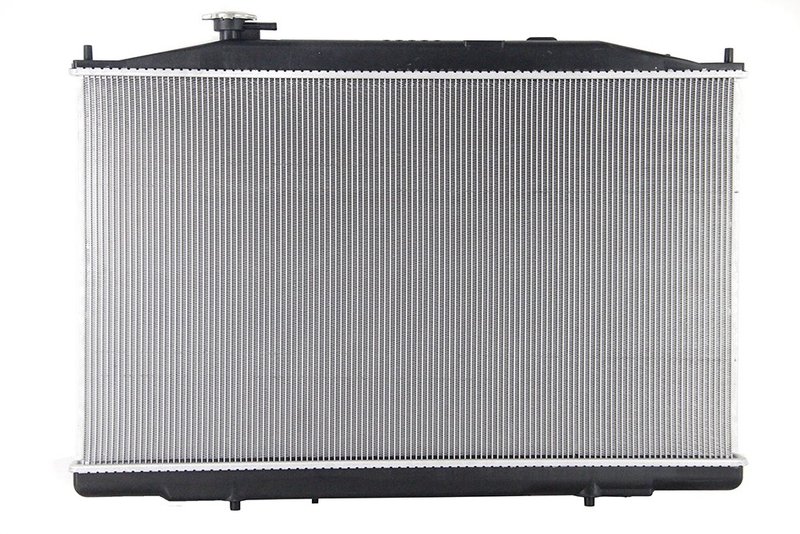

One Stop Solutions 13208 Radiator

Reliable Radiator Replacement for Honda Odyssey

The One Stop Solutions radiator part number 13208 is designed specifically for Honda Odyssey models, providing a direct replacement that ensures proper cooling system performance. Engineered with durable materials and precise dimensions, this radiator supports efficient heat dissipation and transmission oil cooling.

Key Features of One Stop Solutions Radiator 13208

• Hassle free installation with drop-in fit, form, and function
• OE performance and exceptional quality standards
• Engineering enhancements for improved cooling and extended service life
• Premium grade tubes, fins, headers, and plastic tanks
• Transmission oil cooler included with concentric type design
• Complete radiator tested up to three times during production
• Cap included with 1.1 pressure rating
• Components fitted and torqued to factory specifications

Detailed Radiator Specifications and Construction

This radiator features a downflow core measuring 17 11/16 inches in height, 30 1/8 inches in width, and 5/8 inch thickness, constructed from PA core material for durability. The plastic tanks are designed to withstand thermal stress while maintaining a lightweight profile. Both inlet and outlet headers measure 31 3/8 inches in length, with inlet and outlet diameters of 1 5/16 inches, ensuring compatibility with the Honda Odyssey cooling system. The included transmission oil cooler is a concentric type with a diameter of 1 1/8 inches and a fitting distance of 14 3/4 inches, providing integrated transmission fluid cooling without the need for additional components. This radiator does not include an engine oil cooler.

Compatible Applications and Common Issues Addressed

• Replacement for leaking or damaged radiator in Honda Odyssey vehicles
• Resolves overheating caused by clogged or inefficient cooling cores
• Addresses transmission fluid overheating with integrated oil cooler
• Fixes radiator cracks or plastic tank failures
• Improves cooling system reliability after original design failures

Installation Notes and Tips

Designed as a direct replacement, this radiator installs easily without modification. Ensure all hoses and fittings match the specified inlet and outlet diameters of 1 5/16 inches. Verify the transmission oil cooler connections correspond to the concentric cooler fittings spaced 14 3/4 inches apart. Use the included radiator cap rated at 1.1 pressure to maintain system integrity. Follow factory torque specifications when securing components to avoid leaks or damage.

Quality Assurance and Testing

Each One Stop Solutions radiator 13208 undergoes rigorous testing up to three times during production to verify leak-free performance and durability. Components are assembled and torqued to factory specifications to ensure consistent quality. The radiator includes a pressure-rated cap and is engineered with enhancements to address original design weaknesses, contributing to longer service life in Honda Odyssey cooling systems.
