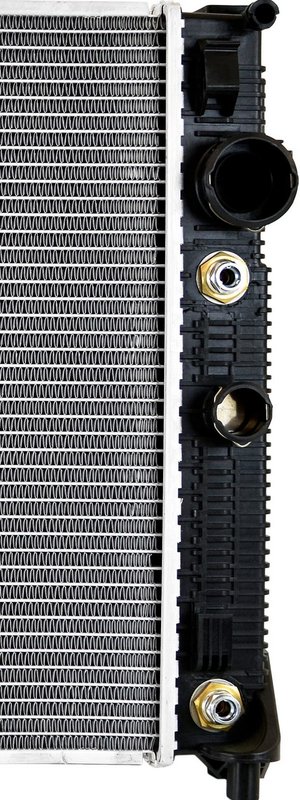

One Stop Solutions 13213 Radiator

Overview of One Stop Solutions Radiator for Mercedes-Benz SLK250

The One Stop Solutions radiator part number 13213 is engineered specifically for the Mercedes-Benz SLK250. Designed as a direct replacement, this radiator ensures reliable cooling performance and integrates a transmission oil cooler to support your vehicle's transmission system.

• Hassle free installation with drop-in fit, form, and function
• O.E. performance and quality with premium grade materials
• Engineering enhancements for improved cooling efficiency and extended service life
• Components fitted and torqued to factory specifications
• Includes plated transmission oil cooler with fittings spaced 10 inches apart
• Crossflow core design with 1 row and plastic tanks
• Core dimensions: 25 3/16" height, 17 9/16" width, 1" thickness

Detailed Radiator Specifications and Features

This radiator features a crossflow core constructed from premium PA material, measuring 25 3/16 inches in height, 17 9/16 inches in width, and 1 inch in thickness. The plastic tanks are designed for durability and weight reduction. Both inlet and outlet headers measure 17 15/16 inches in length and 1 13/16 inches in width, with inlet and outlet diameters of 1 13/16 inches, ensuring compatibility with the Mercedes-Benz SLK250 cooling system. The radiator includes a plated transmission oil cooler with fittings spaced 10 inches apart, supporting efficient transmission fluid cooling. This model does not include an engine oil cooler or radiator cap.

Compatible Applications and Common Issues Addressed

This radiator is compatible with Mercedes-Benz SLK250 models requiring part number 13213. It is designed to address several common cooling system issues, including:

• Overheating due to radiator core damage or clogging
• Transmission fluid overheating from inefficient cooling
• Leaks or cracks in plastic tanks or headers
• Reduced cooling efficiency from worn or corroded components
• Failure of original radiator components causing engine temperature fluctuations

Installation Notes and Tips

Installation of the One Stop Solutions radiator 13213 is straightforward due to its drop-in design. Ensure all fittings and hardware are included and properly torqued to factory specifications. Verify the transmission oil cooler connections are secure and free of leaks. It is recommended to flush the cooling system before installation to prevent contamination. No radiator cap is included, so reuse the existing cap or source separately if needed.

Quality Assurance and Warranty Information

Each radiator undergoes up to three quality tests during production to ensure reliability and performance. Components such as tubes, fins, headers, and tanks are manufactured from premium materials and assembled to meet factory standards. The product includes engineering enhancements to address original design weaknesses and improve longevity. Warranty details should be confirmed with the product documentation or supplier.
