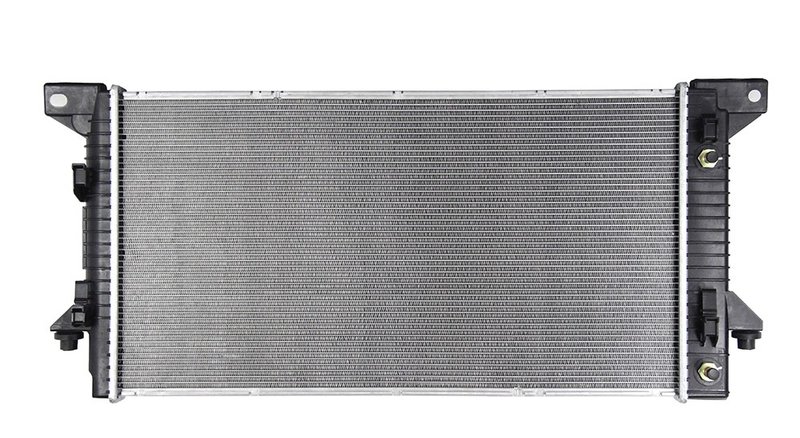

One Stop Solutions 13229 Radiator

Overview of One Stop Solutions Radiator 13229

The One Stop Solutions radiator part number 13229 is designed for reliable cooling performance in Ford and Lincoln vehicles, including the Expedition, F-150, and Navigator models. This radiator features a crossflow design and includes a transmission oil cooler to support engine and transmission temperature management.

• Hassle free installation
• OE performance and exceptional quality
• Engineering enhancements for improved cooling and longer life
• Components fitted and torqued to factory specifications
• Premium grade tubes, fins, headers, and plastic tanks
• Drop-in fit, form, and function with all necessary fittings
• 100% tested up to three times during production
• Design improvements to address original design failures

Technical Specifications and Features

This radiator features a core height of 31 1/2 inches, core width of 16 1/4 inches, and a core thickness of 1-1/4 inches, providing efficient heat dissipation. The core is constructed from premium PA material, while the tanks are made of durable plastic. The crossflow design optimizes coolant flow across the core for consistent engine temperature regulation.

Both the inlet and outlet headers measure 17 3/4 inches in length and 2 11/16 inches in width, with inlet and outlet diameters of 1 1/2 inches. The radiator includes a plated transmission oil cooler with fittings spaced 11 13/16 inches apart, enhancing transmission fluid cooling. This radiator does not include an engine oil cooler or cap.

Compatible Vehicles and Applications

This radiator is compatible with the following vehicles:

• Ford Expedition
• Ford F-150
• Lincoln Navigator

It is designed to replace original equipment radiators in these models, ensuring proper fit and function.

Common Issues Addressed by Radiator 13229

• Overheating due to radiator core damage or clogging
• Transmission fluid overheating with integrated transmission oil cooler
• Leaks or cracks in plastic tanks or headers
• Reduced cooling efficiency from worn or corroded components
• Failure of original radiator design leading to premature wear

Installation Notes and Tips

Installation of the One Stop Solutions radiator 13229 is straightforward with a drop-in fit for compatible Ford and Lincoln models. Ensure all factory specifications for torque are followed when securing components. Verify that the transmission oil cooler fittings align correctly with vehicle lines. Since the radiator does not include a cap, reuse the original or source a compatible cap separately.

Quality Assurance and Testing

Each radiator undergoes rigorous testing up to three times during production to ensure leak-free performance and durability. Components are assembled and torqued to factory specifications to maintain OE standards. The design incorporates enhancements to address known issues from original equipment radiators, contributing to longer service life and reliable cooling.
