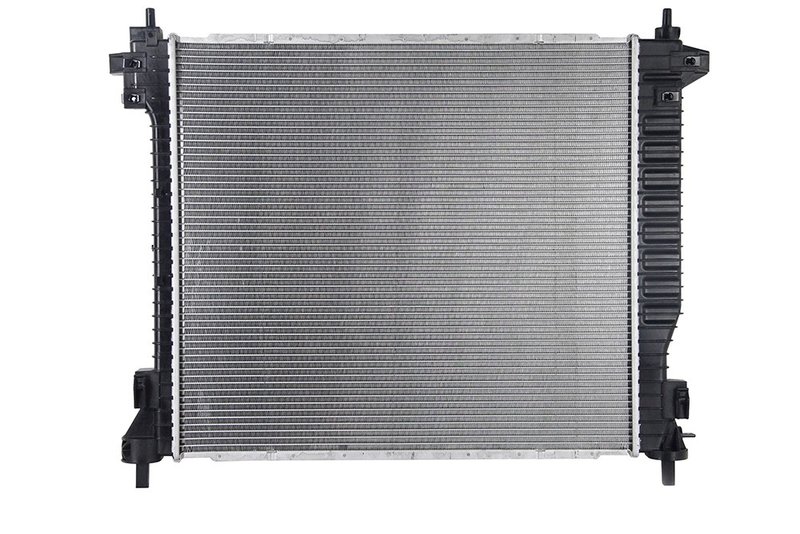

One Stop Solutions 13241 Radiator

Reliable Radiator Replacement for Cadillac SRX

The One Stop Solutions radiator part number 13241 is designed specifically for Cadillac SRX models, providing a direct replacement that ensures optimal engine cooling. Engineered with quality materials and precise dimensions, this radiator supports your vehicle’s cooling system performance and longevity.

Key Features of One Stop Solutions Radiator 13241

• Hassle free installation for Cadillac SRX vehicles
• OE performance with engineering enhancements for improved cooling
• Premium grade core, headers, and tanks for durability
• Includes a plated transmission oil cooler for added functionality
• Drop-in fit with all components torqued to factory specifications
• Crossflow core design with 1 row for efficient heat dissipation
• Tested up to three times during production for quality assurance

Detailed Radiator Specifications and Construction

This radiator features a crossflow core measuring 24 7/16 inches in height, 22 inches in width, and 1 inch thick, constructed from premium PA core material. The plastic tanks are designed to withstand typical operating conditions while maintaining a lightweight profile. Both the inlet and outlet headers measure 22 3/4 inches in length, with widths of 1 13/16 inches and 2 15/16 inches respectively, ensuring proper coolant flow. The inlet and outlet diameters are 1 5/16 inches, compatible with standard Cadillac SRX cooling system fittings.

Additionally, this radiator includes a plated transmission oil cooler with fittings spaced 12 inches apart, enhancing the vehicle’s transmission cooling capabilities. The radiator does not include an engine oil cooler or cap, focusing on core cooling and transmission oil temperature management.

Common Issues Addressed by This Radiator

• Overheating due to worn or damaged radiator core
• Coolant leaks from cracked or deteriorated plastic tanks
• Transmission overheating from inefficient oil cooling
• Reduced cooling efficiency caused by clogged or corroded fins
• Failure of original radiator components leading to engine performance issues

Installation Notes and Tips

Installation of the One Stop Solutions radiator 13241 is straightforward with a direct fit for Cadillac SRX models. Ensure all old coolant is drained before removal. Verify that all hose connections match the 1 5/16 inch inlet and outlet diameters. Since the radiator includes a transmission oil cooler, carefully connect transmission lines to the plated cooler fittings spaced 12 inches apart. Follow factory torque specifications when securing components to maintain proper sealing and avoid leaks.

Quality Assurance and Warranty Information

Each radiator undergoes up to three quality tests during production to ensure reliability and performance. Components are assembled and torqued to factory specifications to meet OEM standards. While specific warranty details are not provided, One Stop Solutions products are manufactured with premium materials and engineering enhancements aimed at extending service life and improving cooling efficiency for Cadillac SRX vehicles.
