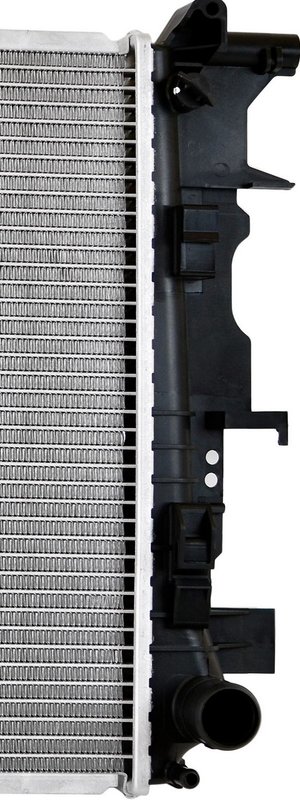

One Stop Solutions 13254 Radiator

Reliable Radiator Replacement for Dodge Sprinter 2500 and 3500

The One Stop Solutions radiator part number 13254 is engineered to meet the cooling demands of Dodge Sprinter 2500 and Sprinter 3500 models. Designed with precision, this radiator ensures efficient heat dissipation and supports transmission oil cooling for optimal vehicle performance.

Key Features of One Stop Solutions Radiator 13254

• Hassle free installation with drop-in fit, form, and function
• OE performance and quality with engineering enhancements for improved cooling and longer life
• Premium grade core materials including PA core and plastic tanks
• Includes concentric transmission oil cooler with 1-inch diameter and 12 1/16-inch fitting spacing
• Crossflow design with core dimensions: 26 11/16" height, 15 11/16" width, and 1" thickness
• Components fitted and torqued to factory specifications
• 100% tested up to three times during production for reliability

Detailed Radiator Specifications and Design

This radiator features a single-row crossflow core constructed from PA material, measuring 26 11/16 inches in height, 15 11/16 inches in width, and 1 inch in thickness. The plastic tanks are designed for durability and weight reduction. Both inlet and outlet headers measure 16 1/2 inches in length and 2 1/8 inches in width, supporting inlet and outlet diameters of 1 3/8 inches and 1 7/8 inches respectively. The integrated concentric transmission oil cooler enhances transmission fluid temperature regulation, with fittings spaced 12 1/16 inches apart and a 1-inch diameter cooler tube. This radiator does not include an engine oil cooler or cap.

Compatible Vehicles and Common Applications

This radiator is specifically compatible with Dodge Sprinter 2500 and Sprinter 3500 models, providing a direct replacement solution for cooling system maintenance or repair.

• Overheating issues due to radiator core damage or clogging
• Transmission fluid overheating requiring integrated cooler replacement
• Leaks or cracks in plastic tanks or headers
• Reduced cooling efficiency from worn or corroded radiator components
• Failure of original radiator causing engine temperature fluctuations

Installation Notes and Tips

Installation of the One Stop Solutions radiator 13254 is designed to be straightforward with a drop-in fit. Ensure all fittings and hardware are included and torqued to factory specifications. Verify the transmission oil cooler connections are properly sealed to prevent leaks. It is recommended to flush the cooling system before installation to remove debris and contaminants.

Quality Assurance and Testing

Each radiator undergoes rigorous testing up to three times during production to ensure durability and performance. Components are assembled and torqued to factory specifications to maintain OE standards. While no cap is included, the radiator is engineered to meet or exceed original equipment requirements for the Dodge Sprinter 2500 and 3500 cooling systems.
