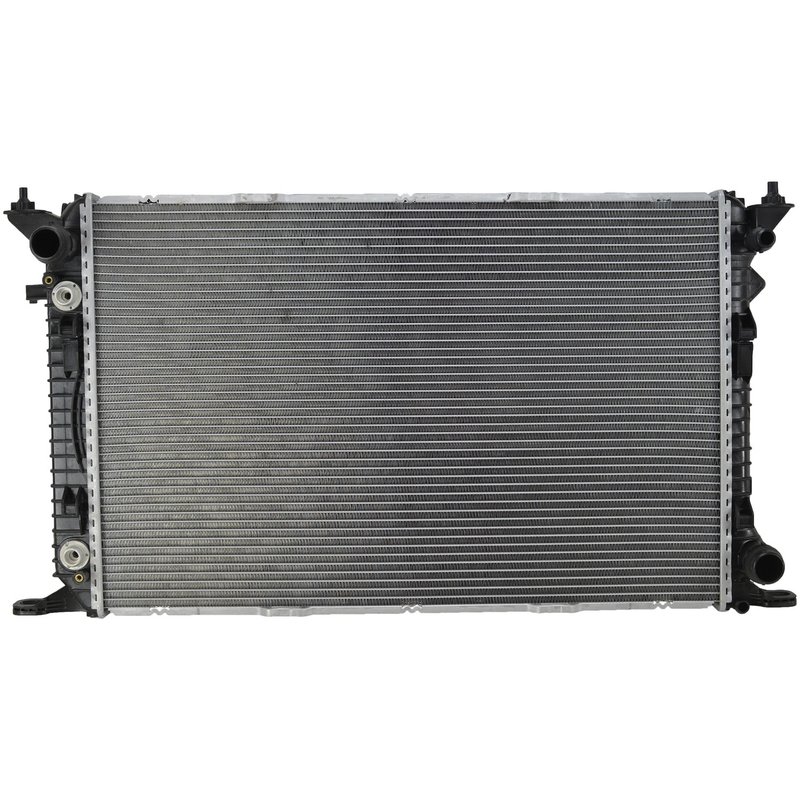

One Stop Solutions 13278 Radiator

Reliable Radiator Replacement for Audi and Porsche Models

The One Stop Solutions radiator part number 13278 is engineered to provide efficient cooling performance for select Audi and Porsche vehicles. Designed with precision, this radiator supports optimal engine temperature management for models including the Audi A4 Quattro, A5, A5 Quattro, A6, and Porsche Macan, Q5, S4, S5, and SQ5.

Key Features of One Stop Solutions Radiator 13278

• Hassle free installation with drop-in fit, form, and function
• OE performance and quality standards maintained
• Engineering enhancements improve cooling efficiency and extend service life
• Premium grade core materials including plastic tanks and PA core
• Includes a plated transmission oil cooler with fittings spaced at 11 13/16 inches
• Crossflow design with dual core rows for effective heat dissipation
• Tested up to three times during production for quality assurance

Detailed Radiator Specifications and Design

This radiator features a core height of 28 3/8 inches, core width of 18 7/16 inches, and a core thickness of 1-7/16 inches, constructed with a durable PA core material. The plastic tanks are designed to withstand thermal stress while maintaining structural integrity. The crossflow configuration enhances coolant flow and heat exchange efficiency. Both inlet and outlet headers measure 19 1/2 inches in length and 2 3/16 inches in width, with inlet and outlet diameters of 1 1/2 inches, ensuring compatibility with the vehicle’s cooling system. The included plated transmission oil cooler supports transmission fluid temperature regulation, critical for vehicle performance under load. This radiator does not include an engine oil cooler or cap.

Compatible Vehicles and Common Applications

• Replacement radiator for Audi A4 Quattro, A5, A5 Quattro, and A6 models
• Suitable for Porsche Macan, Q5, S4, S5, and SQ5 vehicles
• Addresses overheating issues due to radiator core damage or clogging
• Resolves coolant leaks from cracked or worn plastic tanks
• Improves transmission cooling performance with integrated oil cooler

Installation Notes and Tips

Installation of the One Stop Solutions radiator 13278 is designed to be straightforward with a direct drop-in fit. Ensure all factory specifications for torque and fittings are followed during installation. Verify the transmission oil cooler connections are secure and free of leaks. It is recommended to flush the cooling system before installation to prevent contamination. This radiator does not include a cap, so reuse the existing cap or replace as necessary.

Quality Assurance and Testing

Each radiator undergoes rigorous testing up to three times during production to ensure durability and performance. Components are fitted and torqued to factory specifications to maintain OE standards. The product incorporates engineering enhancements to address original design limitations and improve overall cooling efficiency and lifespan.
