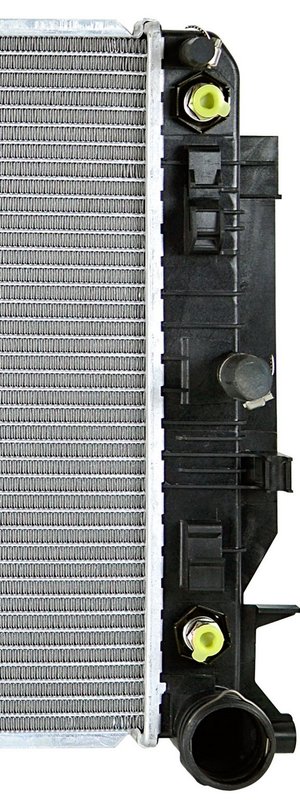

One Stop Solutions 13318 Radiator

Reliable Radiator for Mercedes-Benz Sprinter 2500 and 3500

The One Stop Solutions radiator part number 13318 is engineered specifically for Mercedes-Benz Sprinter 2500 and Sprinter 3500 models. Designed to provide efficient cooling and durability, this radiator supports optimal engine performance under demanding conditions.

• Hassle free installation for quick replacement
• OE performance with exceptional quality materials
• Engineering enhancements improve cooling efficiency and extend service life
• Components fitted and torqued to factory specifications
• Premium grade tubes, fins, headers, and plastic tanks
• Drop-in fit with all necessary fittings and hardware included
• 100% tested up to three times during production
• Includes plated transmission oil cooler for added functionality

Technical Specifications and Features

This radiator features a crossflow design with a core height of 26 3/4 inches, core width of 15 11/16 inches, and a core thickness of 1-1/4 inches. The core is constructed from premium PA material, while the tanks are made of durable plastic. Both inlet and outlet headers measure 16 1/2 inches in length and 2 1/16 inches in width, ensuring proper fitment and fluid flow. The inlet diameter is 1 3/8 inches, and the outlet diameter is 2 1/16 inches. A plated transmission oil cooler is integrated, with fittings spaced 12 inches apart, enhancing transmission cooling capabilities. This radiator has a single core row and does not include an engine oil cooler or cap.

Applications and Common Issues Addressed

• Replacement for leaking or damaged radiators in Mercedes-Benz Sprinter 2500 and 3500
• Resolves overheating caused by clogged or inefficient cooling cores
• Addresses transmission overheating with integrated transmission oil cooler
• Fixes radiator core corrosion or physical damage
• Improves cooling system reliability and engine temperature regulation

Installation Notes and Tips

The One Stop Solutions radiator 13318 is designed for a direct drop-in fit, requiring no modifications. All necessary fittings and hardware are included to facilitate a smooth installation process. It is recommended to follow factory torque specifications when securing components to ensure proper sealing and performance. Verify compatibility with your specific Mercedes-Benz Sprinter 2500 or 3500 model year before installation.

Quality Assurance and Warranty

Each radiator undergoes rigorous testing up to three times during production to ensure durability and performance. Components are assembled and torqued to factory specifications to maintain quality standards. While no specific warranty details are provided, One Stop Solutions products are manufactured to meet or exceed OEM requirements, supporting reliable operation in demanding automotive environments.
