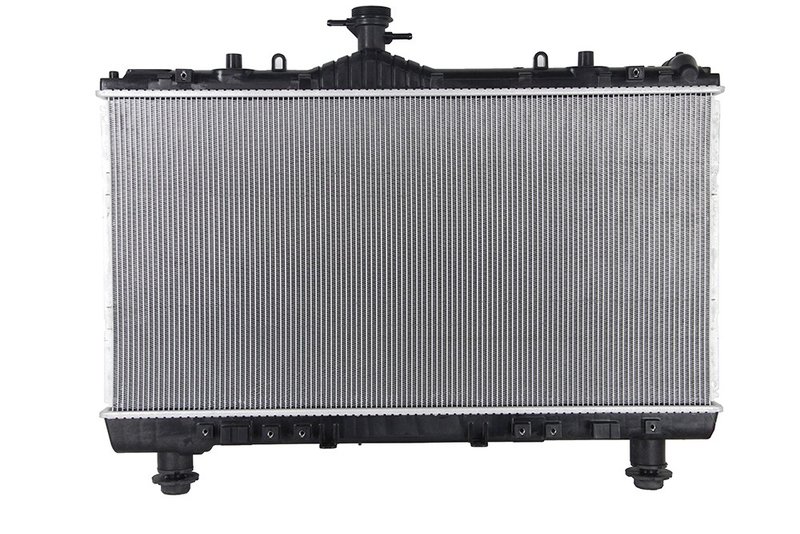

One Stop Solutions 13341 Radiator

Reliable Radiator Replacement for Chevrolet Camaro

The One Stop Solutions radiator part number 13341 is designed specifically for Chevrolet Camaro models, providing a direct fit replacement to maintain optimal engine cooling. Engineered with durable materials and enhanced cooling features, this radiator supports your vehicle's performance and longevity.

Key Features of One Stop Solutions Radiator 13341

• Hassle free installation with drop-in fit, form, and function
• OE performance and exceptional quality standards
• Engineering enhancements for improved cooling efficiency and extended service life
• Premium grade tubes, fins, headers, and plastic tanks
• Transmission oil cooler included with plated cooler type
• Components fitted and torqued to factory specifications
• 100% tested up to three times during production for reliability
• Downflow core design with a single core row for effective heat dissipation

Detailed Radiator Specifications and Construction

This radiator features a core height of 15 11/16 inches, core width of 30 1/8 inches, and a core thickness of 1 inch, optimized for the Chevrolet Camaro cooling system. The core is constructed from premium PA material, while the tanks are made of durable plastic to resist corrosion and wear. Both inlet and outlet diameters measure 1 5/16 inches, with header lengths of 31 3/8 inches and header widths of 2 inches, ensuring proper fluid flow and compatibility.

Included is a plated transmission oil cooler with fittings spaced 14 3/4 inches apart, supporting transmission fluid temperature regulation. The radiator employs a downflow design, which directs coolant downward through the core for efficient heat exchange. Note that this radiator does not include an engine oil cooler or radiator cap.

Applications and Common Issues Addressed

• Replacement for leaking or damaged radiator cores in Chevrolet Camaro vehicles
• Resolution of overheating issues due to clogged or inefficient radiators
• Upgrade to a radiator with integrated transmission oil cooler for improved transmission cooling
• Fixes for radiator tank cracks or plastic component failures
• Restores proper coolant flow and engine temperature regulation

Installation Notes and Tips

Designed as a direct replacement, this radiator installs easily without modification. Ensure all factory fittings and hoses match the specified inlet and outlet diameters of 1 5/16 inches. Verify transmission oil cooler line connections correspond to the 14 3/4 inch fitting spacing. Follow manufacturer torque specifications when securing components to maintain proper sealing and performance.

Quality Assurance and Testing

Each One Stop Solutions radiator 13341 undergoes rigorous testing up to three times during production to ensure leak-free operation and durability. Components are assembled and torqued to factory specifications to meet OE performance standards. While no warranty information is provided, the product's engineering enhancements address original design weaknesses to improve cooling efficiency and service life.
