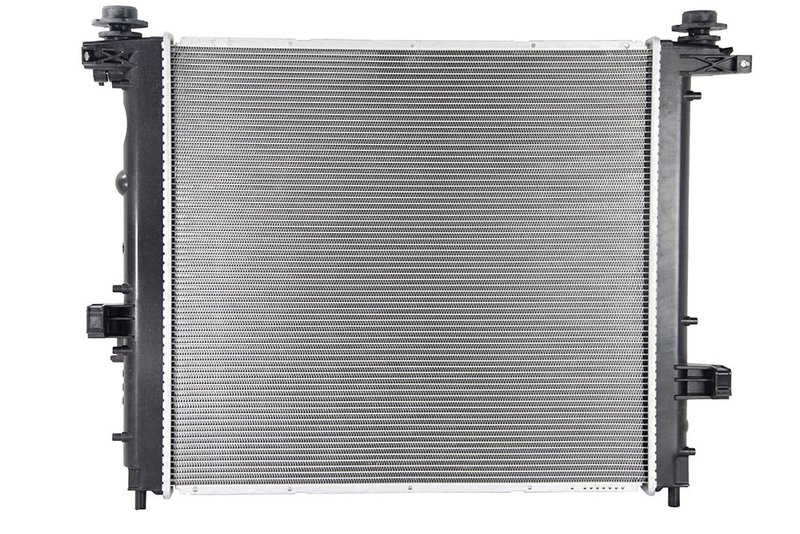

One Stop Solutions 13349 Radiator

Overview of One Stop Solutions Radiator for Cadillac ATS

The One Stop Solutions radiator, part number 13349, is engineered specifically for Cadillac ATS models. Designed with precision, this radiator offers a crossflow core and integrated transmission oil cooler to maintain optimal engine temperatures and transmission performance.

• Core dimensions: 20 5/8" height, 18 7/8" width, 1" thickness
• Plastic tanks with premium grade core material (PA)
• Includes plated transmission oil cooler with 14 3/4" fitting spacing
• Crossflow design for efficient heat dissipation
• Inlet and outlet diameters of 1 5/16" for direct fit
• Drop-in replacement with all necessary fittings and hardware
• Tested up to three times during production for quality assurance

Detailed Product Description

This radiator (part number 13349) is tailored for Cadillac ATS vehicles, featuring a single-row crossflow core constructed from PA material for durability and efficient heat transfer. The plastic tanks reduce weight while maintaining structural integrity. The integrated plated transmission oil cooler supports transmission fluid cooling, with fittings spaced 14 3/4" apart to match factory specifications. Both inlet and outlet headers measure 20" in length and 2" in width, ensuring proper fluid flow. The radiator’s design incorporates engineering enhancements aimed at improving cooling performance and extending service life compared to original equipment.

Applications and Common Issues Addressed

• Overheating due to radiator core damage or clogging
• Transmission fluid overheating from faulty or missing transmission oil cooler
• Leaks caused by cracked plastic tanks or worn seals
• Reduced cooling efficiency from corrosion or bent fins
• Replacement for failed or underperforming OEM radiators on Cadillac ATS

Installation Notes and Tips

Installation of the One Stop Solutions radiator 13349 is designed to be hassle-free with a direct drop-in fit for Cadillac ATS models. All necessary fittings and hardware are included, and components are pre-fitted and torqued to factory specifications. It is recommended to inspect hoses and clamps during installation and replace if necessary to ensure a secure, leak-free connection. Proper coolant type and level should be maintained after installation.

Quality Assurance and Warranty

Each radiator undergoes up to three rounds of testing during production to verify performance and durability. The product meets OE performance standards and includes engineering improvements to address common design failures. While specific warranty details are not provided, One Stop Solutions products are manufactured to meet or exceed factory specifications, ensuring reliable operation for Cadillac ATS vehicles.
