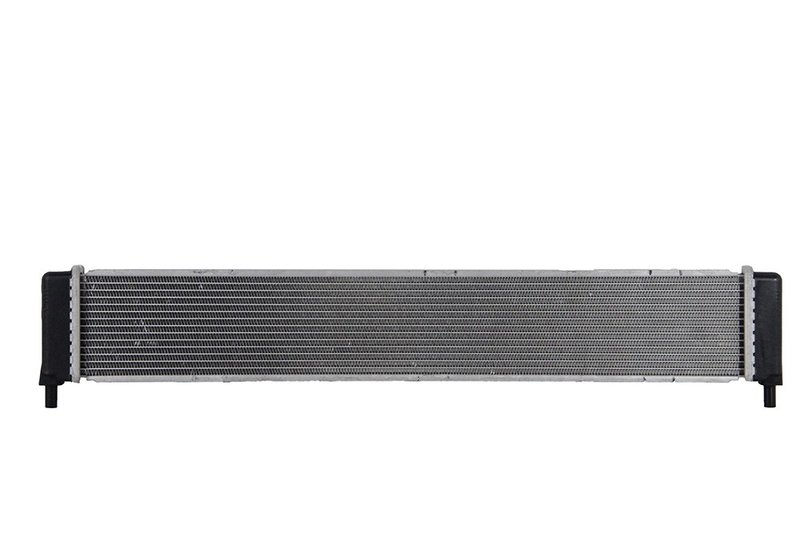

One Stop Solutions 13436 Drive Motor Inverter Cooler

Drive Motor Inverter Cooler for Prius V

Restore thermal control in the hybrid system with this One Stop Solutions drive motor inverter cooler, part number 13436. It is built for the 2012-2016 Toyota Prius V and follows OE-style form and function for a direct replacement on the inverter cooling circuit.

Part number 13436 is engineered with a crossflow design, plastic tanks, and a PA core material. The unit uses a 1-row core layout with 11/16 in. inlet and outlet diameters, plus 4 1/4 in. inlet and outlet header lengths for a factory-style fit in the Toyota Prius V cooling system.

Key Features

• Fits 2012-2016 Toyota Prius V, inverter cooler
• OE-style form and function for direct replacement
• Crossflow design with plastic tanks
• PA core material with 1-row construction
• 11/16 in. inlet and outlet diameters
• 4 1/4 in. inlet and outlet header lengths
• Part number 13436 for easy identification

Detailed Description

This One Stop Solutions inverter cooler is designed for the hybrid drive motor cooling system used in the 2012-2016 Toyota Prius V. It follows the original equipment layout to maintain proper fit, routing, and cooling performance in the inverter circuit. The crossflow configuration, header dimensions, and inlet and outlet sizing support a factory-style installation on the Prius V.

Part number 13436 is built with a PA core and plastic tanks, and it is specified without an engine oil cooler, transmission oil cooler, or cap. This makes it a focused replacement for the inverter cooler application rather than a multi-purpose radiator assembly. This part cross-references Koyorad A13436 for the same application.

Common Problems This Part Can Address

• Inverter cooling system leakage from aged or damaged cooler components
• Restricted coolant flow caused by internal wear or contamination
• Overheating concerns in the Prius V inverter cooling circuit
• Fitment issues from a damaged or non-OE-style replacement cooler
• Cooling performance loss from cracked tanks or deteriorated core materials

Installation Notes and Tips

Verify the vehicle is a 2012-2016 Toyota Prius V before ordering. Compare the inlet and outlet diameters, header lengths, and crossflow layout to the original cooler to confirm match-up with the inverter cooling system. Inspect hoses, clamps, and surrounding cooling components during installation so the replacement cooler can be installed on a clean, leak-free circuit.

Quality Assurance

OSC radiators and coolers are individually pressure tested during production, with testing performed before tank assembly and again after final assembly. The manufacturer also states that components are fitted and torqued to factory specifications and that design updates are used to improve durability and service life.
