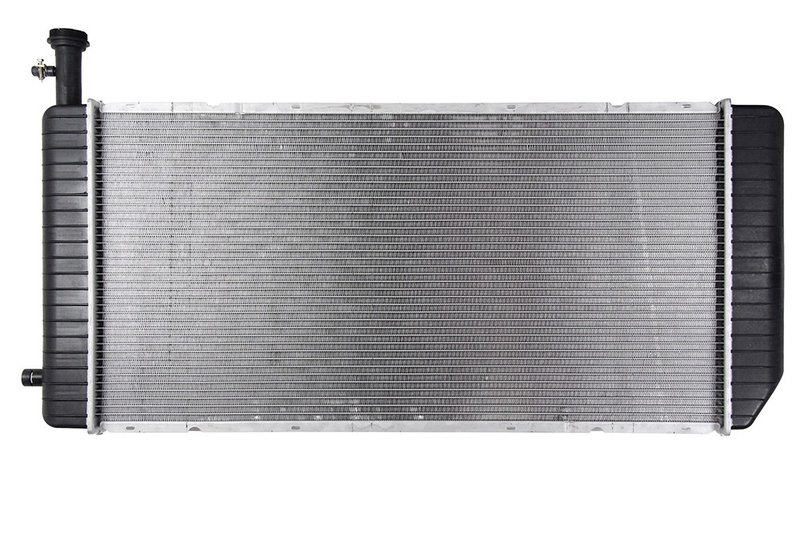

One Stop Solutions 13476 Radiator

Reliable Radiator Replacement for Chevrolet and GMC Vans

The One Stop Solutions radiator part number 13476 is designed specifically for Chevrolet Express 2500, Express 3500, GMC Savana 2500, and Savana 3500 models. Engineered to meet original equipment specifications, this radiator ensures efficient cooling and durability for your vehicle's engine and transmission systems.

• Hassle free installation with drop-in fit, form, and function
• Includes transmission and engine oil coolers with plated cooler types
• Core dimensions: 34" height, 17 1/4" width, 1" and 26" thickness (dual values)
• Plastic tank material with premium grade tubes, fins, and headers
• Crossflow design for optimized coolant flow and heat dissipation
• Fittings and components torqued to factory specifications
• Tested up to three times during production for quality assurance
• Enhanced engineering to address original design limitations and extend service life

Detailed Radiator Specifications and Features

This radiator features a single core row with a core height of 34 inches and a core width of 17 1/4 inches, providing ample surface area for heat exchange. The core thickness is listed as both 1 inch and 26 inches, indicating layered or composite construction for improved cooling efficiency. The plastic tanks reduce weight while maintaining durability. Both inlet and outlet headers measure approximately 18 1/2 inches in length and 3 1/8 inches in width, supporting a crossflow design that enhances coolant circulation.

Included are transmission and engine oil coolers, both utilizing plated cooler types with fittings spaced 11 1/2 inches apart, ensuring effective heat management for both systems. The inlet diameter is 1 5/16 inches, and the outlet diameter is 1 9/16 inches, compatible with factory hose sizes on the specified Chevrolet and GMC van models.

Compatible Vehicles and Common Applications

• Chevrolet Express 2500 radiator replacement
• Chevrolet Express 3500 cooling system upgrade
• GMC Savana 2500 radiator and oil cooler integration
• GMC Savana 3500 transmission and engine cooling solution
• Addressing overheating, coolant leaks, and transmission fluid temperature issues

Installation Notes and Tips

Installation of the One Stop Solutions radiator 13476 is straightforward due to its drop-in design. All necessary fittings and hardware are included, allowing for a direct replacement without modification. Ensure that all connections, including transmission and engine oil cooler fittings, are properly torqued to factory specifications to prevent leaks. It is recommended to flush the cooling system before installation to remove debris and contaminants.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to verify performance and durability. Components such as tubes, fins, headers, and tanks are manufactured from premium materials to meet or exceed OEM standards. While a cap is not included, the radiator is engineered to integrate seamlessly with existing vehicle components. Warranty details should be confirmed with the distributor or manufacturer to ensure coverage.
