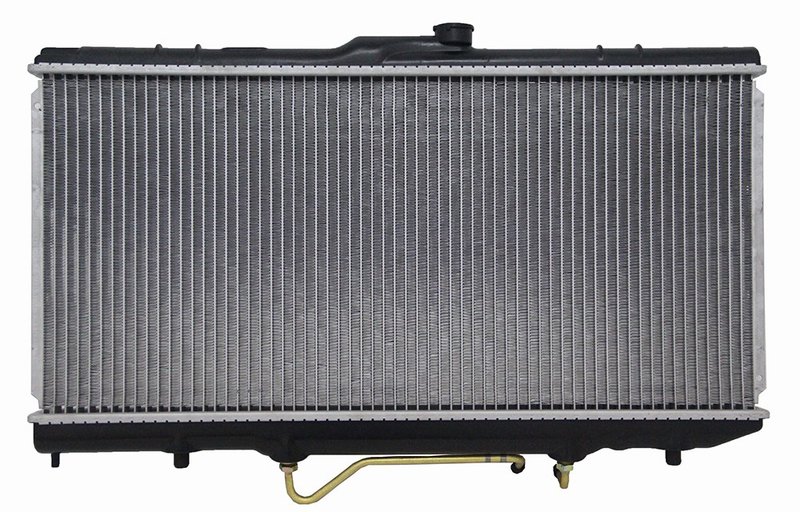

One Stop Solutions 1407 Radiator

Overview of One Stop Solutions Radiator for Toyota Celica

The One Stop Solutions radiator part number 1407 is designed specifically for Toyota Celica models, providing reliable engine cooling and transmission oil cooling in a single unit. Engineered for durability and performance, this radiator supports optimal vehicle operation under various driving conditions.

• Hassle free installation for Toyota Celica vehicles
• OE performance with engineering enhancements for improved cooling
• Premium grade core and tank materials for extended service life
• Includes concentric transmission oil cooler with 1-inch diameter fittings
• Drop-in fit with all necessary fittings and hardware included
• Tested up to three times during production for quality assurance
• Downflow core design with 1 core row for efficient heat dissipation

Detailed Radiator Specifications and Features

This radiator features a core height of 12 13/16 inches, a core width of 27 3/16 inches, and a core thickness of 1 inch, constructed from premium PA core material. The plastic tanks are engineered to meet factory specifications, ensuring a secure and leak-free fit. Both inlet and outlet header lengths measure 28 3/16 inches with widths of 1 15/16 inches, supporting 1 1/4 inch diameter inlet and outlet connections. The downflow design promotes effective coolant flow through the single core row, optimizing heat exchange.

Additionally, the radiator includes a concentric transmission oil cooler with a 1-inch diameter and a 10 13/16 inch distance between fittings, providing integrated transmission fluid cooling without the need for separate components. This radiator does not include an engine oil cooler or cap.

Compatible Vehicles and Applications

This radiator is compatible with Toyota Celica models requiring part number 1407. It is designed to replace original equipment radiators, addressing common cooling system issues such as:

• Overheating due to radiator core damage or clogging
• Transmission fluid overheating from faulty or missing transmission oil coolers
• Leaks or cracks in plastic tanks or headers
• Reduced cooling efficiency from worn or corroded components
• Failure of original design components leading to premature radiator wear

Installation Notes and Tips

Installation of the One Stop Solutions radiator 1407 is straightforward with a drop-in fit for Toyota Celica vehicles. All necessary fittings and hardware are included, and components are pre-fitted and torqued to factory specifications. It is recommended to inspect hoses and clamps during installation and replace if necessary to ensure a secure seal. Proper coolant type and level should be maintained after installation to optimize performance.

Quality Assurance and Warranty Information

Each radiator undergoes up to three quality tests during production to verify performance and durability. The use of premium grade tubes, fins, headers, and tanks contributes to a longer service life. While specific warranty details are not provided, One Stop Solutions products are manufactured to meet or exceed OEM standards, ensuring reliable operation for Toyota Celica owners.
