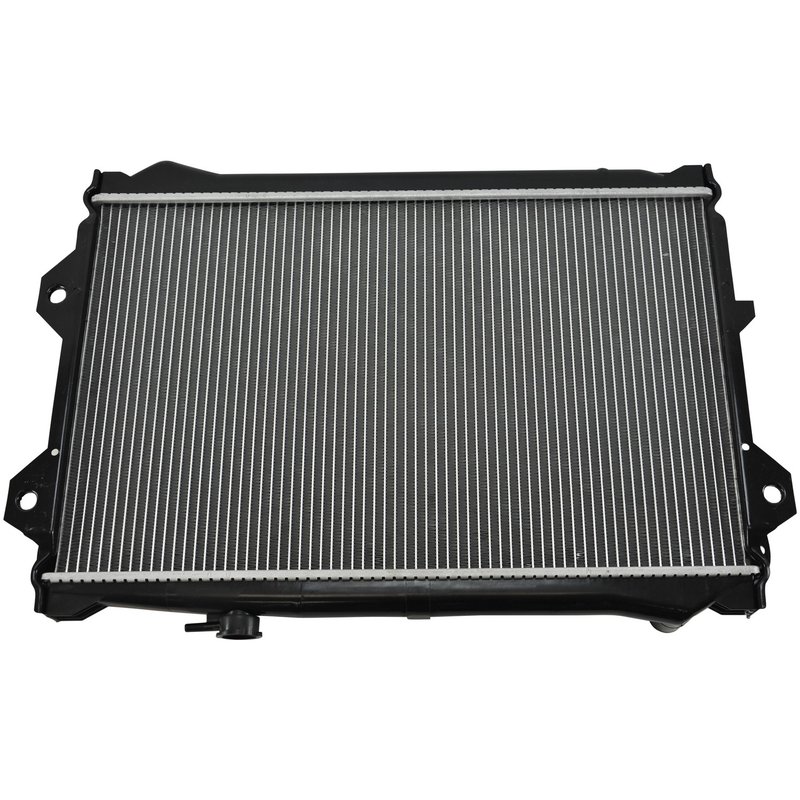

One Stop Solutions 1424 Radiator

Reliable Radiator Replacement for Mazda B2600

The One Stop Solutions radiator part number 1424 is designed specifically for the Mazda B2600, providing a direct fit replacement that supports optimal engine cooling. Engineered with durable materials and enhanced features, this radiator ensures consistent performance under demanding conditions.

Key Features of One Stop Solutions Radiator 1424

• Hassle free installation for Mazda B2600 applications
• OE performance with components engineered to factory specifications
• Improved cooling efficiency and extended service life through engineering enhancements
• Premium grade core, headers, and tanks constructed from plastic and PA materials
• Includes a concentric transmission oil cooler with 1-inch diameter fittings
• Downflow core design with 1 core row for effective heat dissipation
• Complete radiator tested up to three times during production for quality assurance

Detailed Radiator Specifications and Construction

This radiator features a core height of 15 3/4 inches, a core width of 25 1/16 inches, and a core thickness of 1 inch, providing a compact yet efficient cooling surface. The core is made from PA material, while the tanks are constructed from durable plastic to resist corrosion and wear. Both the inlet and outlet headers measure 26 5/16 inches in length and 1 7/8 inches in width, with inlet and outlet diameters of 1 3/8 inches, ensuring proper coolant flow. The downflow design facilitates effective heat transfer, and the single core row balances cooling capacity with compact size. Additionally, the radiator includes a concentric transmission oil cooler with fittings spaced 13 3/4 inches apart, supporting transmission fluid cooling without the need for an engine oil cooler.

Applications and Common Issues Addressed

• Replacement for leaking or damaged radiators on Mazda B2600 models
• Resolves overheating caused by clogged or inefficient cooling cores
• Addresses transmission fluid overheating with integrated transmission oil cooler
• Fixes coolant flow restrictions due to cracked or warped tanks
• Improves cooling system reliability after original radiator failure

Installation Notes and Tips

Designed as a drop-in replacement, the One Stop Solutions radiator 1424 fits directly into the Mazda B2600 cooling system without modification. Ensure all factory fittings and hoses are properly connected to the 1 3/8 inch inlet and outlet ports. Verify the transmission oil cooler lines are securely attached to the concentric cooler fittings spaced 13 3/4 inches apart. Follow manufacturer torque specifications when securing components to maintain system integrity.

Quality Assurance and Testing

Each radiator undergoes rigorous testing up to three times during production to verify leak-free performance and durability. Components are assembled and torqued to factory specifications to ensure consistent quality. While no cap is included, the radiator is engineered to meet OE standards for fit, form, and function, providing reliable cooling for the Mazda B2600. Warranty details should be confirmed with the distributor or manufacturer.
