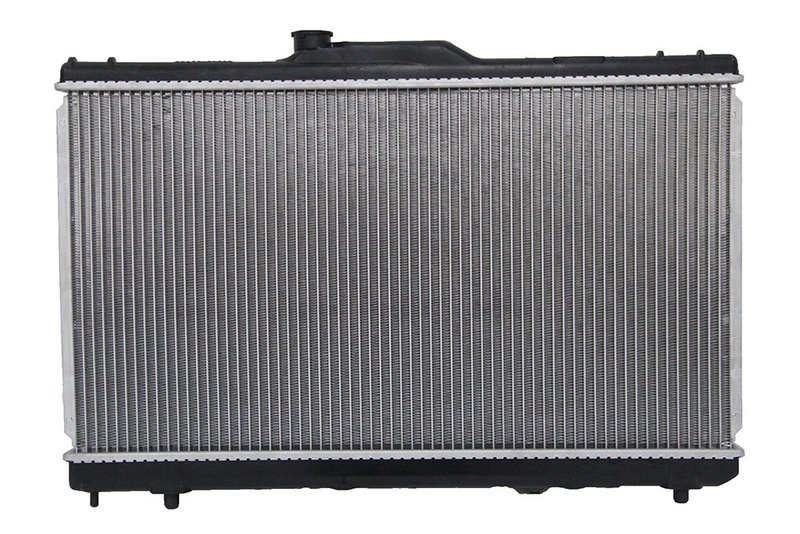

One Stop Solutions 1436 Radiator

Reliable Radiator Replacement for Geo Corolla and Toyota Prizm

The One Stop Solutions radiator part number 1436 is designed specifically for Geo Corolla and Toyota Prizm models. Engineered for durability and efficient cooling, this radiator offers a direct replacement that meets original equipment specifications.

• Hassle free installation with drop-in fit, form, and function
• O.E. performance with premium grade tubes, fins, headers, and tanks
• Engineering enhancements improve cooling efficiency and extend service life
• Components fitted and torqued to factory specifications for reliability
• 100% tested up to three times during production for quality assurance

Technical Specifications and Design Features

This radiator features a downflow core design with a single core row, measuring 13 3/4 inches in height, 25 1/8 inches in width, and a core thickness of 5/8 inch (16 mm). The core material is PA (polyamide), paired with durable plastic tanks. Both inlet and outlet headers measure 26 1/16 inches in length and 1 7/16 inches in width, with inlet and outlet diameters of 1 1/4 inches. This configuration supports efficient coolant flow and heat dissipation, suitable for the cooling demands of the Geo Corolla and Toyota Prizm engines. Note that this radiator does not include transmission or engine oil coolers, and no cap is included.

Compatible Vehicles and Applications

This radiator is compatible with the following vehicles:

• Geo Corolla
• Toyota Prizm

It is intended as a replacement for the original radiator to address cooling system issues such as overheating, coolant leaks, and reduced engine performance due to inefficient heat exchange.

Common Issues Addressed by This Radiator

• Engine overheating caused by radiator core damage or clogging
• Coolant leaks from cracked or deteriorated plastic tanks
• Reduced cooling efficiency due to corrosion or worn components
• Failure of original radiator leading to engine performance problems
• Replacement of radiators without integrated oil coolers for standard cooling needs

Installation Notes and Tips

Installation of the One Stop Solutions radiator 1436 is straightforward due to its drop-in design. Ensure all fittings and hardware are included and properly torqued to factory specifications. Verify hose connections match the 1 1/4 inch inlet and outlet diameters. Since no cap is included, reuse the existing radiator cap or source a compatible replacement. It is recommended to flush the cooling system before installation to prevent contamination and ensure optimal performance.

Quality Assurance and Warranty

Each radiator undergoes rigorous testing up to three times during production to ensure reliability and performance. Components are engineered to meet or exceed original equipment standards. While specific warranty details are not provided, One Stop Solutions products are manufactured with quality control processes aimed at long service life and consistent operation.
