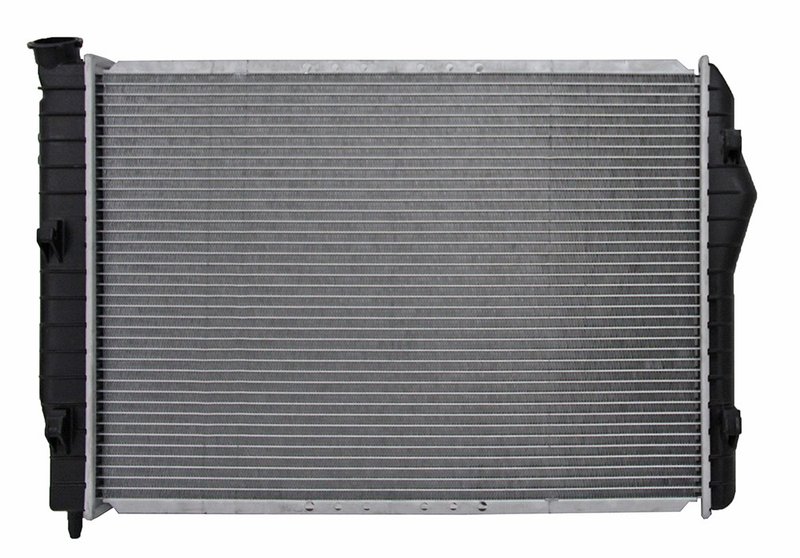

One Stop Solutions 1485 Radiator

Overview of One Stop Solutions Radiator 1485 for Chevrolet Camaro and Pontiac Firebird

The One Stop Solutions radiator part number 1485 is designed specifically for Chevrolet Camaro and Pontiac Firebird models. This radiator features a crossflow design with a single core row, engineered to provide reliable cooling performance and durability for these vehicles.

• Hassle free installation with drop-in fit, form, and function
• OE performance and quality with engineering enhancements for improved cooling
• Premium grade core materials including plastic tanks and PA core
• Includes plated transmission oil cooler with fittings spaced 11 1/2 inches apart
• Components fitted and torqued to factory specifications
• Tested up to three times during production for quality assurance
• Addresses original design issues to enhance longevity and performance

Detailed Radiator Specifications and Features

This radiator features a core height of 24 13/16 inches, core width of 17 1/4 inches, and a core thickness of 1 inch, providing efficient heat dissipation. The crossflow design optimizes coolant flow across the core for better temperature regulation. The core is constructed from PA material, while the tanks are made of durable plastic. Both inlet and outlet diameters measure 1 5/16 inches, with header lengths of 18 3/4 inches and header widths of 2 7/16 inches. The radiator includes a plated transmission oil cooler, but does not include an engine oil cooler or radiator cap. This part is engineered to meet the exact specifications required for Chevrolet Camaro and Pontiac Firebird vehicles, ensuring compatibility and reliable operation.

Applications and Common Issues Addressed

• Replaces failing or leaking radiators in Chevrolet Camaro and Pontiac Firebird
• Solves overheating problems caused by inefficient cooling cores
• Addresses transmission fluid temperature regulation with integrated oil cooler
• Eliminates issues related to cracked or damaged plastic tanks
• Improves cooling system reliability after original radiator design failures

Installation Notes and Tips

Installation of the One Stop Solutions radiator 1485 is straightforward due to its drop-in design. All necessary fittings and hardware are included, allowing for a hassle-free replacement. It is important to verify the inlet and outlet hose diameters (1 5/16 inches) match your vehicle’s hoses. Ensure all components are torqued to factory specifications to maintain proper sealing and performance. The radiator does not include a cap, so reuse the existing cap or purchase a compatible replacement separately.

Quality Assurance and Warranty Information

Each radiator undergoes up to three quality tests during production to ensure durability and performance. Components such as tubes, fins, headers, and tanks are manufactured from premium materials and assembled to meet factory standards. The product includes engineering enhancements designed to improve cooling efficiency and extend service life. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
