One Stop Solutions 1533 Radiator

Reliable Radiator Replacement for Chevrolet and GMC Vehicles

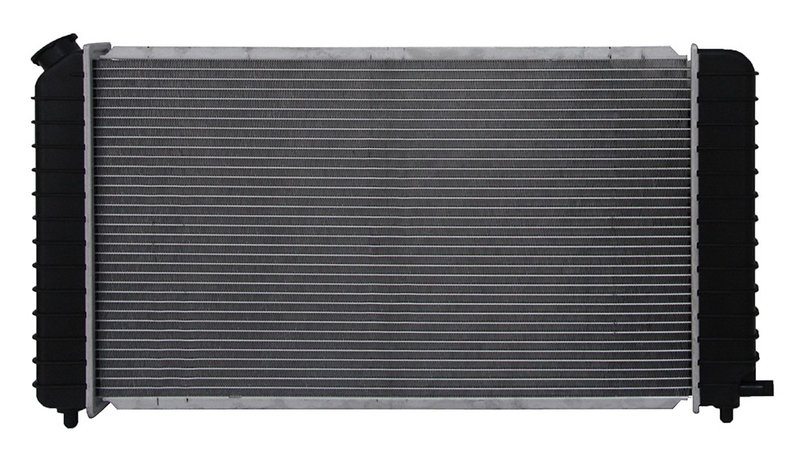

The One Stop Solutions radiator part number 1533 is designed specifically for Chevrolet and GMC models including the Blazer, Jimmy, S10, and Sonoma. Engineered to provide consistent cooling performance, this radiator supports both engine and transmission oil cooling needs.

• Hassle free installation with drop-in fit, form, and function
• OE performance with premium grade tubes, fins, headers, and tanks
• Crossflow core design measuring 26 1/4" height by 15 1/16" width
• Includes plated transmission and engine oil coolers with fittings spaced 11 1/2" apart
• Plastic tanks and PA core material for durability and corrosion resistance
• Core thickness options of 1-1/4" and 32 mm for optimized cooling
• Components fitted and torqued to factory specifications
• Tested up to three times during production for quality assurance

Detailed Radiator Specifications and Features

This radiator features a single-row crossflow core constructed from PA material, measuring 26 1/4 inches in height and 15 1/16 inches in width. The core thickness is available in both 1-1/4 inches and 32 millimeters, providing efficient heat dissipation. The inlet and outlet headers each measure 16 5/8 inches in length and 2 7/16 inches in width, with inlet and outlet diameters of 1 5/16 inches and 1 9/16 inches respectively. The radiator includes both a plated transmission oil cooler and a plated engine oil cooler, with fittings spaced 11 1/2 inches apart to ensure proper fluid flow and cooling efficiency. The tanks are made from durable plastic, contributing to corrosion resistance and longevity.

Compatible Vehicles and Common Applications

This radiator is compatible with the following vehicles:

• Chevrolet Blazer
• Chevrolet S10
• GMC Jimmy
• GMC Sonoma

It is designed to address common cooling system issues such as:

• Overheating due to radiator core damage or clogging
• Transmission fluid overheating from faulty or missing oil coolers
• Leaks caused by cracked plastic tanks or worn seals
• Reduced cooling efficiency from corrosion or bent fins
• Engine oil temperature regulation problems

Installation Notes and Tips

The One Stop Solutions radiator 1533 is engineered for a direct replacement with all necessary fittings and hardware included. Installation requires no modifications, ensuring a straightforward swap for Chevrolet Blazer, GMC Jimmy, S10, and Sonoma models. It is recommended to inspect hoses and clamps during installation and replace any worn components to maintain system integrity. Proper torque specifications should be followed when securing components to factory standards.

Quality Assurance and Warranty Information

Each radiator undergoes up to three quality tests during production to verify performance and durability. Components are assembled and torqued to factory specifications to ensure reliability. The radiator includes enhancements to address original design weaknesses and improve cooling longevity. While a cap is not included, the radiator is compatible with OEM caps. Warranty details should be confirmed with the distributor or manufacturer.
