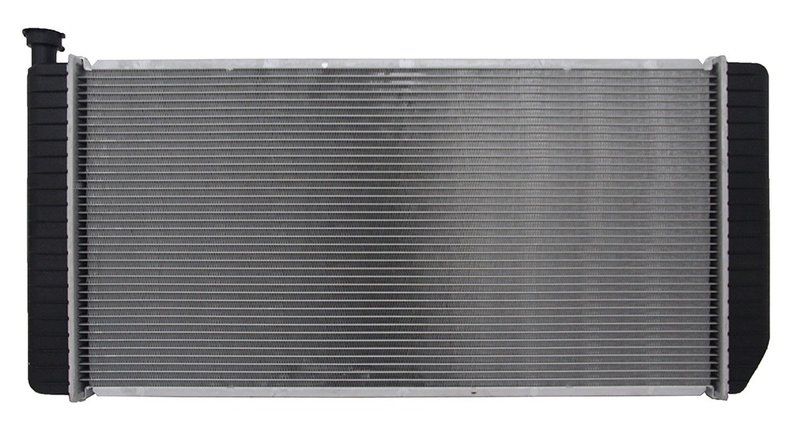

One Stop Solutions 1693 Radiator

Overview of One Stop Solutions Radiator 1693

The One Stop Solutions Radiator part number 1693 is designed for reliable cooling performance in select Cadillac, Chevrolet, and GMC trucks and SUVs. Engineered to meet OE specifications, this radiator supports efficient engine and transmission cooling for models including the Silverado, Tahoe, Yukon, Escalade, and various C and K series trucks.

• Hassle free installation with drop-in fit, form, and function
• O.E. performance and quality with premium grade materials
• Engineering enhancements for improved cooling and extended service life
• Includes transmission and engine oil coolers with plated cooler types
• Plastic tanks and PA core material for durability and corrosion resistance
• Crossflow design with precise core dimensions for optimal heat dissipation
• Components fitted and torqued to factory specifications
• 100% tested up to three times during production for quality assurance

Detailed Radiator Specifications and Features

This radiator features a crossflow core measuring 17 1/4 inches wide by 34 inches high with a 1-1/4 inch thickness, constructed from PA core material and plastic tanks. The inlet and outlet headers each measure 18 1/2 inches in length and 3 3/16 inches in width, supporting inlet and outlet diameters of 1 5/16 inches and 1 9/16 inches respectively. It includes a single core row and is equipped with both transmission and engine oil coolers, each utilizing plated cooler types with fittings spaced 11 1/2 inches apart. These specifications ensure compatibility with various Cadillac, Chevrolet, and GMC models such as the Blazer, C1500 Suburban, Escalade, and Yukon, providing effective heat exchange and fluid cooling under demanding conditions.

Compatible Vehicles and Applications

This radiator is compatible with the following makes and models:

• Cadillac Escalade
• Chevrolet Blazer, C1500, C1500 Suburban, C2500, C2500 Suburban, C3500, Silverado, Tahoe
• GMC K1500, K1500 Suburban, K2500, K2500 Suburban, K3500, Yukon

It is designed to address common cooling system issues such as:

• Overheating due to radiator core damage or clogging
• Transmission fluid overheating from faulty or missing transmission oil coolers
• Engine oil temperature regulation problems
• Leaks or cracks in plastic tanks or headers
• Reduced cooling efficiency from worn or corroded components

Installation Notes and Tips

The One Stop Solutions Radiator 1693 is engineered for a direct replacement with all necessary fittings and hardware included. Installation requires standard tools and adherence to factory torque specifications to ensure proper sealing and performance. It is recommended to inspect hoses, clamps, and cooling system components during installation to maintain system integrity. Bleeding the cooling system after installation will help prevent air pockets and ensure optimal coolant flow.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to verify leak-free operation and durability. Components such as tubes, fins, headers, and tanks are manufactured from premium materials to meet or exceed OEM standards. While specific warranty details are not provided, One Stop Solutions products are built to deliver consistent performance and reliability in demanding automotive applications.
