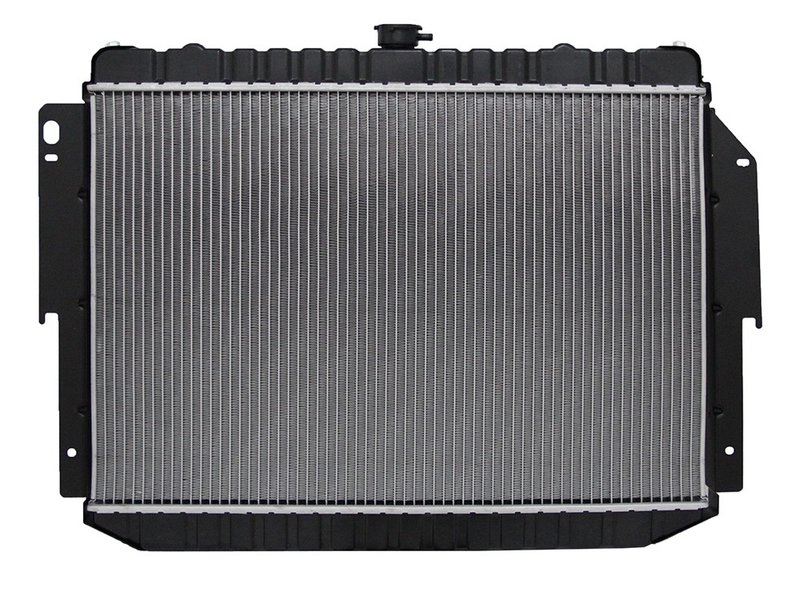

One Stop Solutions 1707 Radiator

Overview of One Stop Solutions Radiator 1707

The One Stop Solutions Radiator part number 1707 is designed specifically for Dodge B150, B250, B350, B1500, B2500, B3500, Ram 1500 Van, Ram 2500 Van, and Ram 3500 Van models. This radiator offers a downflow design with integrated transmission oil cooler to maintain optimal engine and transmission temperatures.

• Hassle free installation with drop-in fit, form, and function
• OE performance and quality with engineering enhancements for improved cooling
• Premium grade core, headers, tanks, and components for durability
• Includes concentric transmission oil cooler with 1-inch diameter and 14 3/8-inch fitting spacing
• Plastic tanks and PA core material for corrosion resistance
• Core dimensions: 18 5/16" height, 26 3/4" width, 1 1/4" thickness
• Inlet and outlet header lengths of 27 5/16" with 2 1/8" widths
• Tested up to three times during production for quality assurance

Detailed Radiator Specifications and Features

This radiator features a single-row core constructed from PA material, measuring 18 5/16 inches in height, 26 3/4 inches in width, and 1 1/4 inches in thickness. The plastic tanks provide resistance to corrosion and wear, while the downflow design ensures efficient coolant flow through the engine. The inlet diameter is 1 1/2 inches and the outlet diameter is 1 3/4 inches, matching factory specifications for the compatible Dodge and Ram van models.

Included is a concentric transmission oil cooler with a 1-inch diameter and fittings spaced 14 3/8 inches apart, allowing for integrated transmission fluid cooling without additional components. The radiator does not include an engine oil cooler or cap, focusing on core cooling and transmission oil temperature management.

Compatible Vehicles and Common Applications

• Dodge B150, B250, B350
• Dodge B1500, B2500, B3500
• Ram 1500 Van, Ram 2500 Van, Ram 3500 Van

This radiator is suitable for addressing issues such as overheating, coolant leaks, transmission fluid overheating, reduced cooling efficiency, and radiator core damage in the listed Dodge and Ram van models.

Installation Notes and Tips

• Ensure all fittings and hardware are torqued to factory specifications
• Verify compatibility with vehicle model and engine before installation
• Drain coolant and transmission fluid prior to removal of old radiator
• Inspect hoses and clamps for wear and replace if necessary
• Bleed cooling system after installation to remove air pockets

Quality Assurance and Warranty Information

Each One Stop Solutions radiator 1707 is tested up to three times during production to ensure reliability and performance. Components are fitted and torqued to factory specifications to maintain OE standards. While no cap is included, the radiator meets or exceeds original equipment requirements for the specified Dodge and Ram van models. Warranty details should be confirmed with the product documentation or manufacturer.
