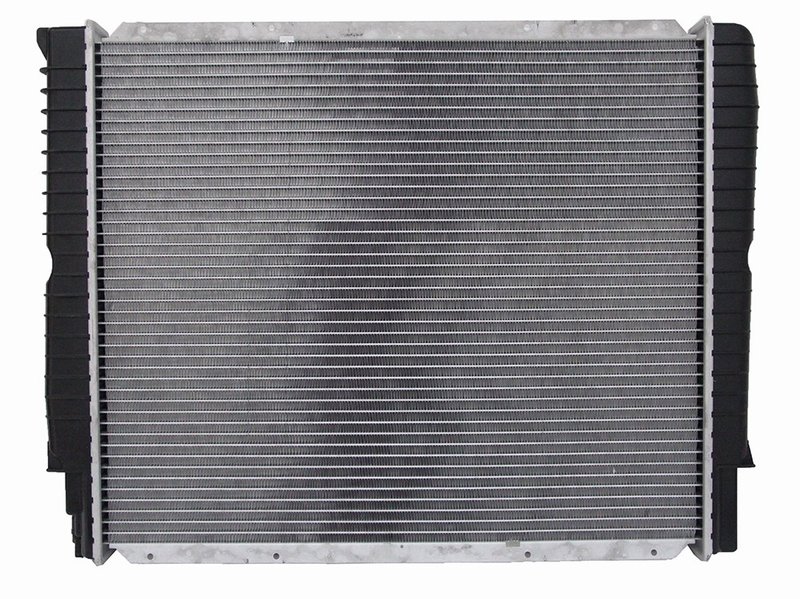

One Stop Solutions 1738 Radiator

Overview of One Stop Solutions Radiator 1738 for Volvo Models

The One Stop Solutions Radiator part number 1738 is designed specifically for Volvo 960, S90, and V90 models. Engineered to meet original equipment specifications, this radiator offers reliable cooling performance with a crossflow design and integrated transmission oil cooler.

• Hassle free installation with drop-in fit, form, and function
• OE performance with premium grade tubes, fins, headers, and plastic tanks
• Crossflow core measuring 23 1/4" height by 19 7/16" width and 1 1/4" thickness
• Includes concentric transmission oil cooler with 1 1/4" diameter and 11" fitting spacing
• Components fitted and torqued to factory specifications for durability
• 100% tested up to three times during production for quality assurance
• Engineering enhancements to improve cooling efficiency and extend service life

Detailed Radiator Specifications and Features

This radiator features a single-row crossflow core constructed from premium PA material, measuring 23 1/4 inches in height, 19 7/16 inches in width, and 1 1/4 inches thick. The plastic tanks and headers are designed for durability and corrosion resistance. Both inlet and outlet headers measure 21 inches in length and 2 5/16 inches in width, with inlet and outlet diameters of 1 5/16 inches, ensuring proper coolant flow. The integrated concentric transmission oil cooler has a diameter of 1 1/4 inches and fittings spaced 11 inches apart, providing efficient transmission fluid cooling. This radiator does not include an engine oil cooler or cap.

Compatible Vehicles and Common Applications

This radiator is compatible with the following Volvo models:

• Volvo 960
• Volvo S90
• Volvo V90

It is designed to address common cooling system issues such as:

• Overheating due to radiator core damage or clogging
• Transmission fluid overheating from inefficient cooling
• Leaks or cracks in plastic tanks or headers
• Reduced cooling efficiency from worn or corroded components
• Failure of original radiator components causing engine temperature fluctuations

Installation Notes and Tips

The One Stop Solutions radiator 1738 is a direct replacement designed for easy installation without modification. Ensure all fittings and hoses are properly connected and torqued to factory specifications. Verify the transmission oil cooler lines are securely attached to prevent leaks. Bleed the cooling system thoroughly after installation to remove air pockets and maintain optimal performance.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to ensure reliability and performance. Components are assembled and torqued to factory specifications to maintain structural integrity. While specific warranty details are not provided, One Stop Solutions products are manufactured to meet or exceed OEM standards, supporting long-term durability and consistent cooling performance.
