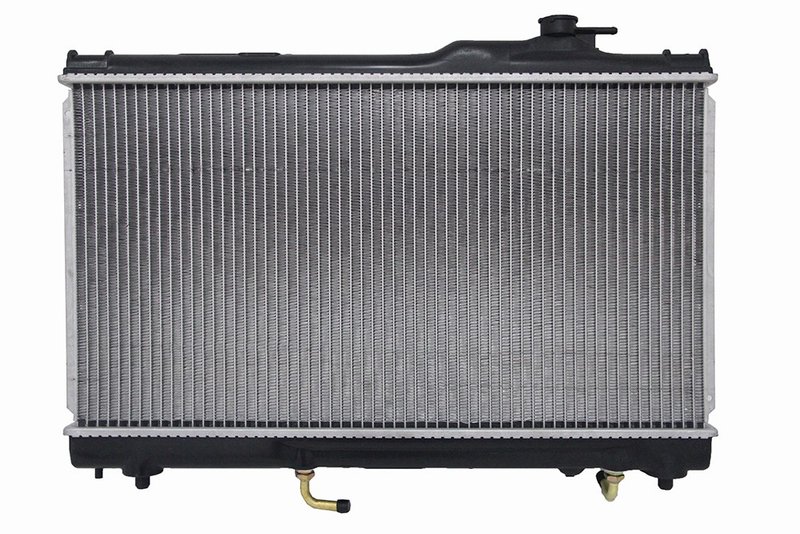

One Stop Solutions 1748 Radiator

Overview of One Stop Solutions Radiator for Toyota Celica

The One Stop Solutions radiator part number 1748 is designed specifically for Toyota Celica models, providing reliable engine cooling with a downflow core design. This radiator features a transmission oil cooler and is engineered to meet original equipment performance standards.

• Hassle free installation for Toyota Celica vehicles
• OE performance with enhanced cooling efficiency
• Engineering improvements for longer radiator life
• Components fitted and torqued to factory specifications
• Premium grade core materials including plastic tanks and PA core
• Drop-in fit, form, and function with all necessary fittings
• 100% tested up to three times during production
• Design enhancements to address original design issues

Detailed Radiator Specifications and Features

This radiator features a core height of 13 3/4 inches, core width of 25 1/2 inches, and a core thickness of 1 inch, optimized for efficient heat dissipation. The core is constructed from PA material, paired with durable plastic tanks to ensure corrosion resistance and longevity. The radiator includes a concentric transmission oil cooler with a 3/4 inch diameter and 12 13/16 inch distance between fittings, supporting automatic transmission cooling needs. The inlet and outlet diameters are both 1 1/4 inches, with inlet and outlet header lengths and widths designed for a precise fit in the Toyota Celica cooling system. This radiator uses a downflow design and contains a single core row, balancing cooling performance and compact size.

Compatible Vehicles and Common Applications

This radiator is compatible with Toyota Celica models requiring part number 1748. It is intended to replace worn or damaged radiators and address cooling system issues such as:

• Engine overheating due to radiator core damage or clogging
• Transmission fluid overheating in vehicles with automatic transmissions
• Leaks or cracks in plastic tanks or headers
• Reduced cooling efficiency from corrosion or wear
• Failure of original radiator components causing engine performance issues

Installation Notes and Tips

Installation of the One Stop Solutions radiator 1748 is designed to be straightforward with a drop-in fit for Toyota Celica models. Ensure all hoses and fittings match the specified inlet and outlet diameters of 1 1/4 inches. Verify the transmission oil cooler connections correspond to the concentric cooler type with a 3/4 inch diameter. Follow factory torque specifications when securing components to maintain proper sealing and avoid leaks.

Quality Assurance and Testing

Each radiator undergoes rigorous quality control, including up to three separate pressure and leak tests during production. Components such as tubes, fins, headers, and tanks are manufactured from premium materials and assembled to meet factory specifications. While no cap is included, the radiator is engineered to provide consistent cooling performance and durability for Toyota Celica vehicles. Warranty details should be confirmed with the distributor or manufacturer.
