Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

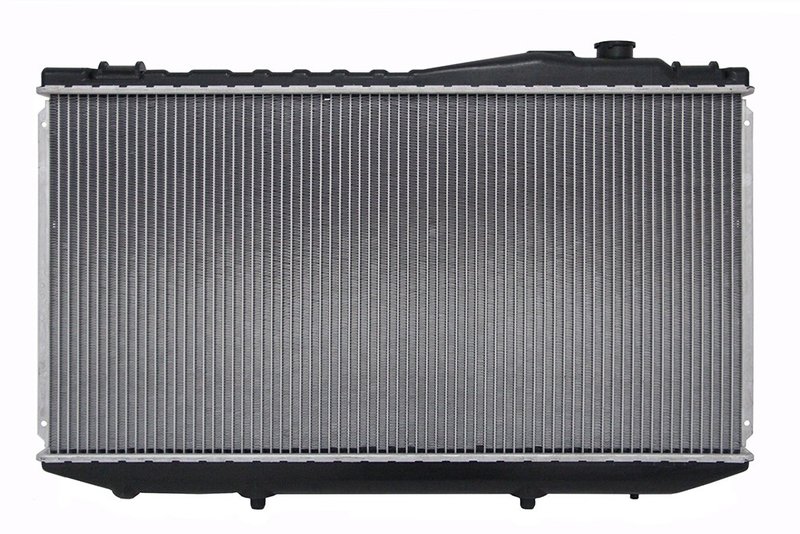

One Stop Solutions 178 Radiator
| Brand | One Stop Solutions 178 |
|---|---|
| Core Height | 14 3/4 |
| Core Thickness | 1 |
| Core Thickness | 26 |
| Core Width | 27 7/8 |
| Inlet Header Length | 28 3/4 |
| Outlet Header Length | 28 3/4 |
| Core Material | Pa |
| Tank Material | Plastic |
| Transmission Oil Cooler Included | Yes |
| Inlet Header Width | 2 1/16 |
| Outlet Header Width | 2 1/16 |
| Transmission Oil Cooler Type | Concentric |
| Transmission Oil Cooler Diameter | 1 |
| Transmission Oil Cooler Distance between Fittings | 14 3/4 |
| Engine Oil Cooler Type | None |
| Core Row Quantity | 1 |
| Inlet Diameter | 1 5/16 |
| Outlet Diameter | 1 5/16 |
| Engine Oil Cooler Included | No |
| Down Flow Or Cross Flow Type | Downflow |
| Cap Included | No |
| Fits | Toyota · 4 vehicles |
OES-style replacement. Built to match original equipment form and function for a factory-style radiator swap.
Corrosion-resistant tubes. Cadmium-plated internal and external surfaces help resist premature failure.
Pressure tested. Each radiator is checked during production for sealing and assembly integrity.
Cross-references APDI 8010178, 431180 and 1640042210 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator Overview
This OSC Premium radiator is built for OES form and function with a premium aluminum core, plastic tanks, and a downflow layout. It is engineered for multi-fit applications and pressure tested during production for leak resistance and consistent cooling performance. Part number 178 is a direct-fit style replacement for select Toyota Cressida applications.
Key Features
- Premium aluminum construction with cadmium-plated tubes for added corrosion resistance.
- Downflow design with a concentric transmission oil cooler included.
- Die-cut gasket helps maintain a secure seal.
- Engine oil cooler is not included.
- Factory-style fit and function for select Toyota Cressida models.
Detailed Description
OSC part number 178 is a replacement radiator engineered to match original equipment form and function while addressing common cooling-system failure points. The core measures 27 7/8 inches wide, 14 3/4 inches high, and 1 inch thick, with 1 5/16-inch inlet and outlet diameters. It uses a single-row core, plastic tanks, and a concentric transmission oil cooler to support the original cooling layout where equipped. This radiator cross-references APDI 8010178 for the same application.
Fits 1989-1992 Toyota Cressida, N/A.
What It Helps Address
- Coolant leaks from aging radiator tanks or seals.
- Reduced cooling efficiency from worn or damaged internal components.
- Transmission heat management in applications with an integrated cooler.
- Fitment issues caused by non-OE-style replacement parts.
Installation Notes and Tips
Verify core dimensions, inlet and outlet sizes, and cooler configuration before installation. This unit is built for applications with a concentric transmission oil cooler and no engine oil cooler. Hardware is included with the radiator, and the assembly is pressure tested during production.
Quality Assurance
OSC tests the cooler circuits and completed radiator during manufacturing to confirm sealing and assembly integrity. The design follows OES form and function for a factory-style replacement.
| Year | Make | Model | Transmission | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 1992 | Toyota | Cressida | Automatic | 3.0L | L6 | w/EOC; 1-1/4" CORE; ENHANCED UNIT; 2 ROW Equivalent |
| 1991 | Toyota | Cressida | Automatic | 3.0L | L6 | w/EOC; 1-1/4" CORE; ENHANCED UNIT; 2 ROW Equivalent |
| 1990 | Toyota | Cressida | Automatic | 3.0L | L6 | w/EOC; 1-1/4" CORE; ENHANCED UNIT; 2 ROW Equivalent |
| 1989 | Toyota | Cressida | Automatic | 3.0L | L6 | w/EOC; 1-1/4" CORE; ENHANCED UNIT; 2 ROW Equivalent |
