OE Quality
60-Day Returns

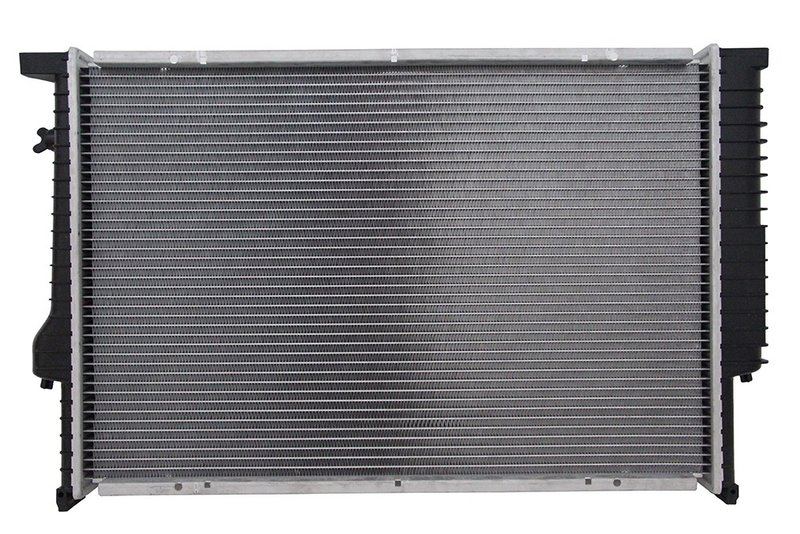

One Stop Solutions 1843 Radiator
Radiator for BMW 530i
One Stop Solutions Part Number 1843 is an OSC Premium New Automotive Radiator built for OE-style form and function. It is engineered for the 1994-1995 BMW 530i and uses premium-grade aluminum construction with plastic tanks for a direct replacement fit.
Key Features
- Fits 1994 BMW 530i, N/A, from 9/93
- Fits 1995 BMW 530i, N/A
- Core height: 25 3/8 in.
- Core width: 16 7/8 in.
- Core thickness: 1-1/4 in. (32 mm)
- Crossflow design with one-row core
- 1 9/16 in. inlet and outlet diameters
- Plastic tanks with PA core material
- No engine oil cooler, transmission oil cooler, or cap included
Detailed Description
This radiator is built to match original equipment dimensions and cooling layout for BMW 530i applications. OSC uses cadmium-plated tubes, a die-cut gasket for sealing, and pressure testing during production to help maintain leak resistance and consistent cooling performance. The design also incorporates engineering updates such as increased fin density and a thicker core to address heat load in higher-mileage vehicles. Part Number 1843 is a direct-fit radiator choice for BMW 530i owners replacing a worn or leaking cooling unit.
This part cross-references 17111702453 and CU1842 for the same application.
Common Problems This Part Can Address
- Coolant leaks from a cracked or aging radiator tank
- Overheating caused by restricted coolant flow or reduced heat transfer
- Cooling system loss from worn seals or gasket failure
- Fitment issues from a damaged or previously repaired radiator
- Reduced cooling efficiency in a high-mileage BMW 530i
Installation Notes and Tips
Verify radiator dimensions, inlet and outlet size, and crossflow layout before installation. Inspect hoses, clamps, and surrounding cooling system components for wear before transferring the new radiator into place. Because this unit is engineered for OE-style fitment, installation is straightforward on the listed BMW 530i applications when the vehicle configuration matches the catalog data.
Quality Assurance
OSC radiators are individually pressure tested during production, with testing performed before and after core assembly. The construction uses premium materials and factory-style component fitment to support consistent cooling performance on the listed BMW 530i applications.
| Brand | One Stop Solutions |
|---|---|
| Part Number | 1843 |
| Core Height | 25 3/8 |
| Core Thickness | 1-1/4 |
| Core Thickness | 32 |
| Core Width | 16 7/8 |
| Inlet Header Length | 18 3/16 |
| Outlet Header Length | 18 3/16 |
| Core Material | Pa |
| Tank Material | Plastic |
| Transmission Oil Cooler Included | No |
| Inlet Header Width | 2 1/2 |
| Outlet Header Width | 2 1/2 |
| Transmission Oil Cooler Type | None |
| Engine Oil Cooler Type | None |
| Core Row Quantity | 1 |
| Inlet Diameter | 1 9/16 |
| Outlet Diameter | 1 9/16 |
| Engine Oil Cooler Included | No |
| Down Flow Or Cross Flow Type | Crossflow |
| Cap Included | No |
| BulletPoint 1 | Hassle free installation |
| BulletPoint 2 | O.e. performance and exceptional quality |
| BulletPoint 3 | Engineering enhancements provide improved cooling and longer life |
| BulletPoint 4 | Components are fitted and torqued in place to factory specificati |
| BulletPoint 5 | Premium grade tubes, fins, headers, tanks, and other components a |
| BulletPoint 6 | Drop in fit, form and function. all necessary fittings or hardwar |
| BulletPoint 7 | Complete radiators 100% tested up to three times during productio |
| BulletPoint 8 | Enhancements added to solve original design failures and to impro |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1995 | BMW | 530i | 3.0L | V8 | N/A | |
| 1994 | BMW | 530i | 3.0L | V8 | N/A | From 9/93 |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
