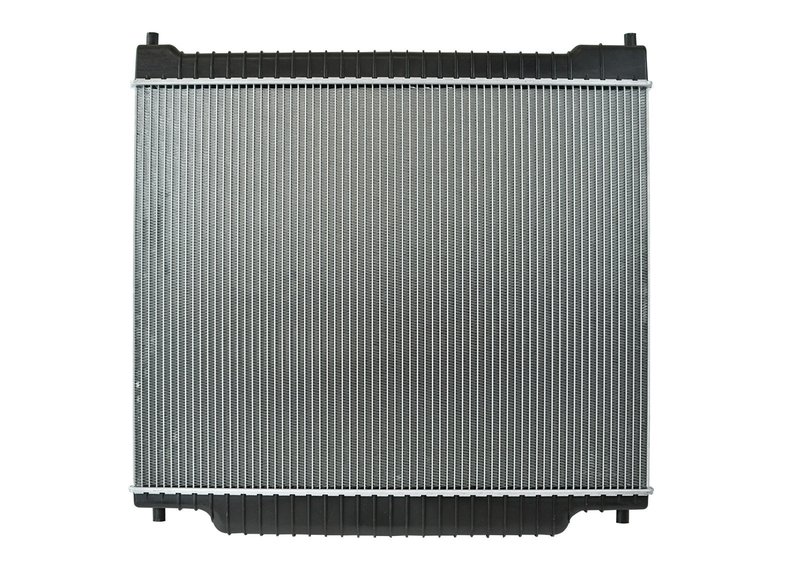

One Stop Solutions 1995 Radiator

Reliable Radiator Replacement for Ford E-Series Vehicles

The One Stop Solutions radiator part number 1995 is engineered to provide dependable cooling performance for Ford E-150, E-250, and E-350 models, including Econoline and Club Wagon variants. Designed as a direct replacement, this radiator supports optimal engine temperature management and transmission oil cooling.

• Hassle free installation with drop-in fit, form, and function
• OE performance with premium grade tubes, fins, headers, and tanks
• Engineering enhancements improve cooling efficiency and extend service life
• Includes concentric transmission oil cooler with 1 3/4 inch diameter
• Core dimensions: 23 5/8" height, 29 13/16" width, 2-3/16" thickness
• Plastic tanks and PA core material for durability and corrosion resistance
• Two-row downflow core design for effective heat dissipation
• All components fitted and torqued to factory specifications
• 100% tested up to three times during production for quality assurance

Detailed Radiator Specifications and Features

This radiator features a 2-row downflow core constructed from PA material, measuring 23 5/8 inches in height, 29 13/16 inches in width, and 2-3/16 inches in thickness. The plastic tanks are designed to withstand thermal stress while maintaining a lightweight profile. Both inlet and outlet headers measure 30 1/2 inches in length and 3 3/16 inches in width, with 1 3/4 inch diameter inlet and outlet ports to ensure proper coolant flow. The included concentric transmission oil cooler has a diameter of 1 3/4 inches and a 12-inch distance between fittings, providing integrated transmission fluid cooling without the need for additional components. This radiator does not include an engine oil cooler or cap.

Compatible Ford Models and Applications

This radiator is compatible with a range of Ford E-Series vehicles, including:

• Ford E-150, E-150 Club Wagon, and E-150 Econoline Club Wagon
• Ford E-250 and E-250 Econoline
• Ford E-350, E-350 Club Wagon, E-350 Econoline, E-350 Econoline Club Wagon, and E-350 Super Duty

Common Issues Addressed by This Radiator

• Overheating due to clogged or damaged radiator cores
• Transmission fluid overheating from inadequate cooling
• Leaks caused by cracked plastic tanks or corroded cores
• Reduced cooling efficiency from bent fins or damaged tubes
• Premature radiator failure from original design weaknesses

Installation Notes and Tips

The One Stop Solutions radiator 1995 is designed for a direct drop-in replacement, requiring no modifications to existing mounting points or hoses. Ensure all fittings and hardware are torqued to factory specifications during installation. Verify that the transmission oil cooler lines are properly connected to the concentric cooler fittings. Bleed the cooling system thoroughly to remove air pockets and check for leaks before operating the vehicle.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to ensure consistent quality and performance. Components are assembled and torqued to meet factory specifications. One Stop Solutions provides a limited warranty covering defects in materials and workmanship, supporting reliable operation for Ford E-Series vehicles equipped with this radiator.
