One Stop Solutions 2139 Radiator

Overview of One Stop Solutions Radiator for Ford Mustang

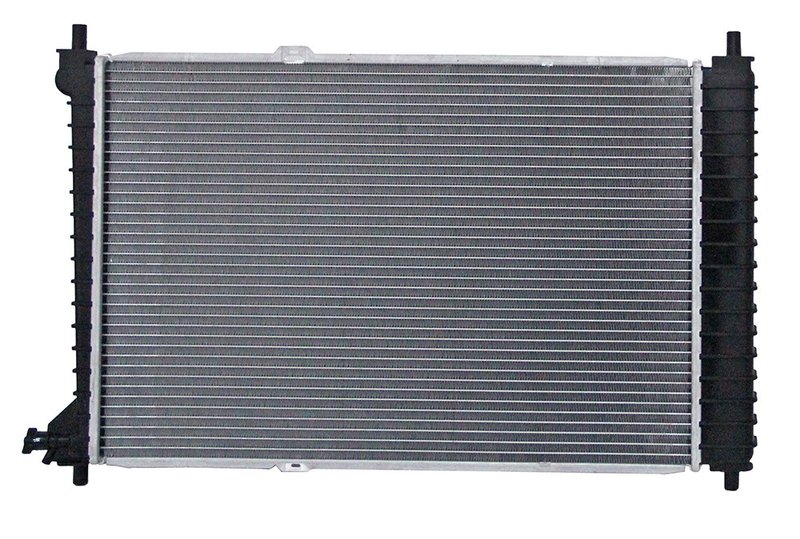

The One Stop Solutions radiator part number 2139 is designed specifically for Ford Mustang models, providing reliable cooling performance. Engineered with a crossflow design and premium materials, this radiator supports efficient engine temperature management and includes a transmission oil cooler for added functionality.

• Hassle free installation for quick replacement
• OE performance with engineering enhancements for improved cooling
• Premium grade tubes, fins, headers, and plastic tanks
• Includes plated transmission oil cooler with fittings spaced 10 inches apart
• Drop-in fit with all necessary fittings and hardware included
• Tested up to three times during production for quality assurance
• Components fitted and torqued to factory specifications

Technical Specifications and Features

This radiator features a core height of 25 inches, core width of 16 13/16 inches, and a core thickness of 1 inch, constructed with PA core material and plastic tanks. The crossflow design enhances heat dissipation efficiency. The inlet and outlet header lengths are both 17 5/16 inches, with inlet and outlet header widths of 1 15/16 inches and 3 1/8 inches respectively. The inlet diameter measures 1 1/2 inches, while the outlet diameter is 1 3/4 inches. The radiator includes a plated transmission oil cooler but does not include an engine oil cooler. The transmission oil cooler fittings are spaced 10 inches apart to match factory specifications.

Compatible Vehicles and Applications

This radiator is compatible with Ford Mustang vehicles requiring part number 2139. It is designed to replace original equipment radiators, ensuring proper fit, form, and function for this specific make and model.

• Overheating issues due to radiator core damage or clogging
• Coolant leaks from cracked or worn plastic tanks
• Transmission fluid overheating requiring integrated cooler replacement
• Reduced cooling efficiency from bent or corroded fins
• Failure of original radiator causing engine temperature fluctuations

Installation Notes and Tips

Installation of the One Stop Solutions radiator 2139 is straightforward with a drop-in fit design. All necessary fittings and hardware are included to match factory specifications. It is recommended to drain all fluids before removal and inspect hoses and clamps for wear. Proper torque settings should be followed when securing components to avoid leaks or damage.

Quality Assurance and Warranty

Each radiator undergoes up to three quality tests during production to ensure durability and performance. Components are assembled and torqued to factory specifications to maintain reliability. While specific warranty details are not provided, One Stop Solutions products are manufactured to meet OE standards and include enhancements to address original design issues.
