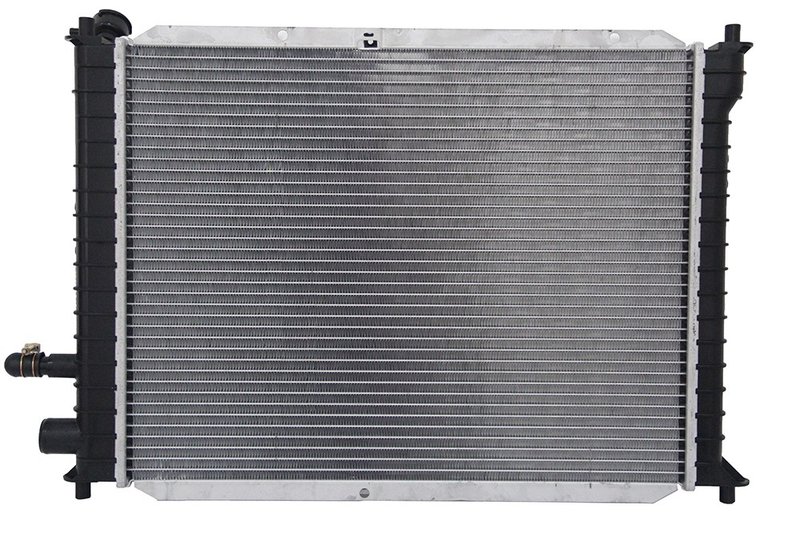

One Stop Solutions 2140 Radiator

Reliable Radiator Replacement for Ford Escort

The One Stop Solutions radiator part number 2140 is designed specifically for Ford Escort models, providing a direct replacement that ensures proper cooling system performance. Engineered with quality materials and precise dimensions, this radiator supports efficient engine temperature regulation and transmission oil cooling.

Key Features of One Stop Solutions Radiator 2140

• Hassle free installation with drop-in fit, form, and function
• O.E. performance and exceptional quality components
• Engineering enhancements for improved cooling and extended service life
• Premium grade tubes, fins, headers, and plastic tanks
• Includes concentric transmission oil cooler with 1 inch diameter
• Crossflow core design with 1 core row for efficient heat dissipation
• Components fitted and torqued to factory specifications
• 100% tested up to three times during production for reliability

Detailed Radiator Specifications and Construction

This radiator features a crossflow core measuring 21 5/8 inches in height, 16 13/16 inches in width, and 1 inch in thickness, constructed from premium PA core material. The plastic tanks are designed for durability and corrosion resistance. Both inlet and outlet headers measure 17 5/16 inches in length and 1 15/16 inches in width, with inlet and outlet diameters of 1 3/8 inches, ensuring compatibility with Ford Escort cooling systems. The included concentric transmission oil cooler has fittings spaced 11 13/16 inches apart, supporting transmission fluid temperature regulation. This radiator does not include an engine oil cooler or cap.

Compatible Applications and Common Issues Addressed

• Replacement for leaking or damaged radiator in Ford Escort vehicles
• Resolves overheating caused by inefficient or clogged radiator cores
• Addresses transmission overheating with integrated oil cooler
• Fixes coolant leaks from cracked plastic tanks or headers
• Improves cooling system performance after original radiator failure

Installation Notes and Tips

Installation of the One Stop Solutions radiator 2140 is straightforward due to its drop-in design. Ensure all fittings and hoses are properly connected to the 1 3/8 inch inlet and outlet ports. Verify that the concentric transmission oil cooler lines are securely attached with the correct spacing of 11 13/16 inches between fittings. Follow factory torque specifications when securing components to avoid leaks or damage. Bleed the cooling system thoroughly after installation to remove air pockets.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to ensure durability and performance. Components are assembled and torqued to meet factory specifications. One Stop Solutions provides a limited warranty covering defects in materials and workmanship, supporting long-term reliability for Ford Escort owners.
