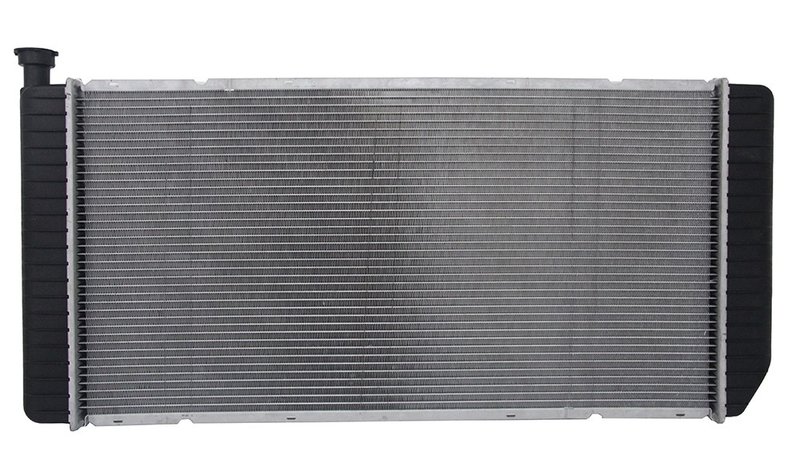

One Stop Solutions 2317 Radiator

Reliable Radiator Replacement for Cadillac, Chevrolet, and GMC Vehicles

The One Stop Solutions radiator part number 2317 is engineered to provide dependable cooling performance for select Cadillac, Chevrolet, and GMC trucks and SUVs. Designed as a direct replacement, this radiator supports optimal engine temperature management and includes a transmission oil cooler for enhanced vehicle operation.

• Hassle free installation with drop-in fit, form, and function
• OE performance with premium grade tubes, fins, headers, and plastic tanks
• Crossflow core design measuring 34 inches height by 17 1/4 inches width
• Includes plated transmission oil cooler with 11 1/2 inch fitting spacing
• Components fitted and torqued to factory specifications for durability
• Tested up to three times during production for quality assurance
• Engineering enhancements improve cooling efficiency and extend service life

Detailed Radiator Specifications and Features

This radiator features a single-row crossflow core constructed from premium PA material with a core thickness of 1 inch and a core width of 17 1/4 inches. The inlet and outlet header lengths are both 18 1/2 inches, with header widths of 3 1/8 inches. The inlet diameter measures 1 5/16 inches, while the outlet diameter is 1 9/16 inches, ensuring proper coolant flow. The plastic tank material reduces weight while maintaining durability. A plated transmission oil cooler is integrated, with fittings spaced 11 1/2 inches apart, supporting transmission fluid cooling needs. This radiator does not include an engine oil cooler or cap.

Compatible Vehicles and Applications

This radiator is compatible with a range of Cadillac, Chevrolet, and GMC models, including:

• Cadillac Escalade
• Chevrolet C1500, C1500 Suburban, C2500, C2500 Suburban, C3500, Silverado, Tahoe
• GMC K1500, K1500 Suburban, K2500, K2500 Suburban, K3500, Yukon

It is designed to replace original equipment radiators in these vehicles, maintaining proper cooling system function and transmission fluid temperature control.

Common Issues Addressed by This Radiator

• Overheating due to radiator core damage or clogging
• Transmission fluid overheating from a faulty or missing transmission oil cooler
• Leaks caused by cracked plastic tanks or worn seals
• Reduced cooling efficiency from corrosion or bent fins
• Engine performance issues related to improper coolant flow

Installation Notes and Tips

Installation of the One Stop Solutions radiator 2317 is straightforward due to its drop-in design. Ensure all fittings and hoses are properly connected and torqued to factory specifications. Verify the transmission oil cooler lines are securely attached to prevent leaks. Bleed the cooling system after installation to remove air pockets and confirm proper coolant circulation. No radiator cap is included, so reuse the existing cap or source a compatible replacement.

Quality Assurance and Warranty Information

Each radiator undergoes up to three quality tests during production to ensure reliability and performance. Components are assembled and torqued to meet factory standards. One Stop Solutions provides a limited warranty covering defects in materials and workmanship, supporting confidence in this radiator’s durability and function.
