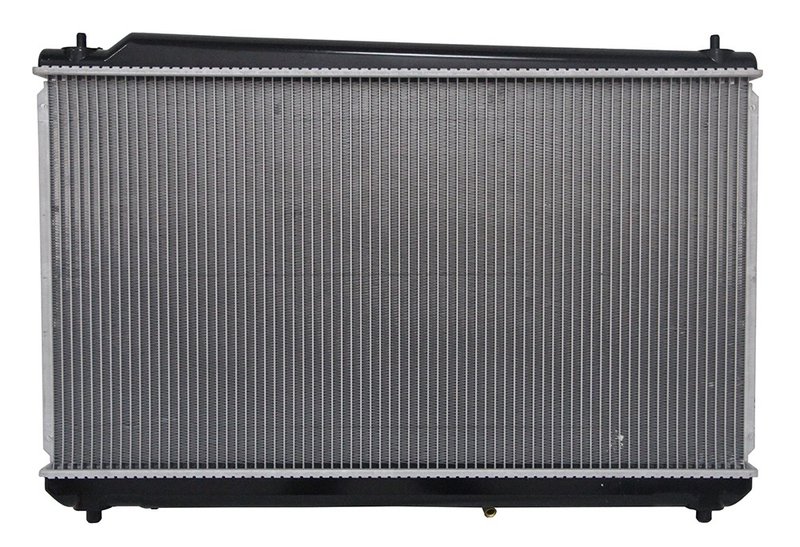

One Stop Solutions 2324 Radiator

Overview of One Stop Solutions Radiator for Toyota Avalon

The One Stop Solutions radiator part number 2324 is designed specifically for Toyota Avalon models, providing reliable cooling performance. Engineered with durable materials and precise dimensions, this radiator supports efficient engine temperature regulation and includes a transmission oil cooler for added functionality.

• Hassle free installation for Toyota Avalon vehicles
• OE performance with quality components
• Engineering enhancements for improved cooling and extended service life
• Factory torque specifications applied to all fittings
• Premium grade tubes, fins, headers, and plastic tanks
• Drop-in fit with all necessary hardware included
• 100% tested up to three times during production
• Design improvements to address original radiator issues

Technical Specifications and Features

This radiator features a downflow core design measuring 15 3/4 inches in height, 28 1/4 inches in width, and a core thickness of 5/8 inch. The core is constructed from PA material, while the tanks are made of durable plastic. Both inlet and outlet diameters are 1 3/8 inches, with header lengths of 29 1/8 inches and header widths of 2 inches. The radiator includes a concentric transmission oil cooler with a diameter of 1 1/8 inches and a fitting distance of 14 3/4 inches. It is a single-row core radiator without an engine oil cooler.

Compatible Vehicles and Applications

This radiator is compatible with Toyota Avalon models requiring part number 2324. It is designed to replace original equipment radiators, ensuring proper fit, form, and function. The integrated transmission oil cooler supports automatic transmission cooling needs, making it suitable for Avalon vehicles equipped with automatic transmissions.

• Overheating issues due to radiator core damage or clogging
• Coolant leaks from cracked or worn plastic tanks
• Transmission overheating caused by faulty or missing transmission oil cooler
• Reduced cooling efficiency from bent or corroded fins
• Radiator failure from original design weaknesses addressed by engineering enhancements

Installation Notes and Tips

Installation of the One Stop Solutions radiator 2324 is straightforward with a drop-in design that matches factory specifications. Ensure all fittings and hardware are torqued to manufacturer standards. Verify the transmission oil cooler connections are secure and free of leaks. It is recommended to flush the cooling system before installation to prevent contamination and ensure optimal performance.

Quality Assurance and Warranty

Each radiator undergoes rigorous testing up to three times during production to verify durability and performance. Components are assembled and torqued to factory specifications to maintain reliability. While no cap is included, the radiator meets OE quality standards. Warranty details should be confirmed with the distributor or manufacturer.
