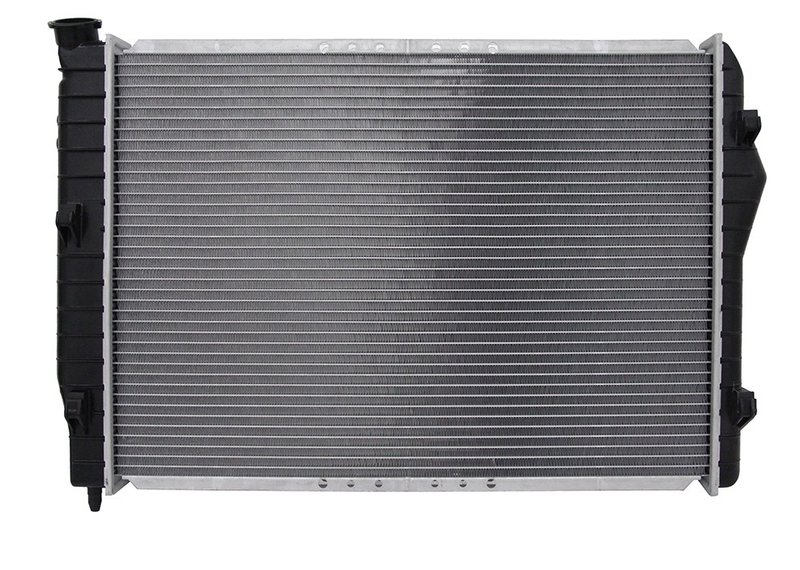

One Stop Solutions 2353 Radiator

Overview of One Stop Solutions Radiator 2353

The One Stop Solutions radiator part number 2353 is engineered for reliable cooling performance in Chevrolet Camaro and Pontiac Firebird vehicles. Designed as a crossflow radiator, it integrates a transmission oil cooler to support efficient heat dissipation and maintain optimal engine temperatures.

• Hassle free installation for Chevrolet Camaro and Pontiac Firebird
• OE performance with enhanced cooling and durability
• Premium grade core and tank materials for long service life
• Includes plated transmission oil cooler with precise fitting spacing
• Drop-in fit with components torqued to factory specifications
• 100% tested multiple times during production for quality assurance
• Engineering improvements address original design limitations

Technical Specifications and Features

This radiator features a core height of 24 13/16 inches, core width of 17 1/4 inches, and a core thickness of 1 inch, providing a single-row crossflow design optimized for heat exchange. The core is constructed from PA material, while the tanks are made of durable plastic. Both inlet and outlet diameters measure 1 5/16 inches, with header lengths of 18 3/4 inches and header widths of 2 7/16 inches, ensuring compatibility with the specified vehicle models.

Included is a plated transmission oil cooler with fittings spaced 11 1/2 inches apart, enhancing transmission fluid cooling without the need for an engine oil cooler. The radiator is designed to meet OE standards, with all components fitted and torqued to factory specifications to maintain proper function and longevity.

Applications and Problem Solving

• Replacement for worn or leaking radiators in Chevrolet Camaro and Pontiac Firebird
• Addresses overheating issues caused by inefficient cooling systems
• Resolves transmission fluid overheating with integrated oil cooler
• Improves cooling system reliability after original radiator failure
• Suitable for vehicles requiring a crossflow radiator design

Installation Notes and Tips

Installation of the One Stop Solutions radiator 2353 is straightforward due to its drop-in fit design. Ensure all connections, including inlet and outlet hoses, match the 1 5/16 inch diameter specifications. Verify the transmission oil cooler fittings align with the 11 1/2 inch spacing for proper hose attachment. Follow factory torque specifications when securing components to maintain system integrity.

Quality Assurance and Warranty

Each radiator undergoes up to three rounds of testing during production to verify performance and durability. The product is engineered with enhancements to improve cooling efficiency and extend service life compared to original equipment. Warranty details should be confirmed with the distributor or manufacturer to ensure coverage terms.
