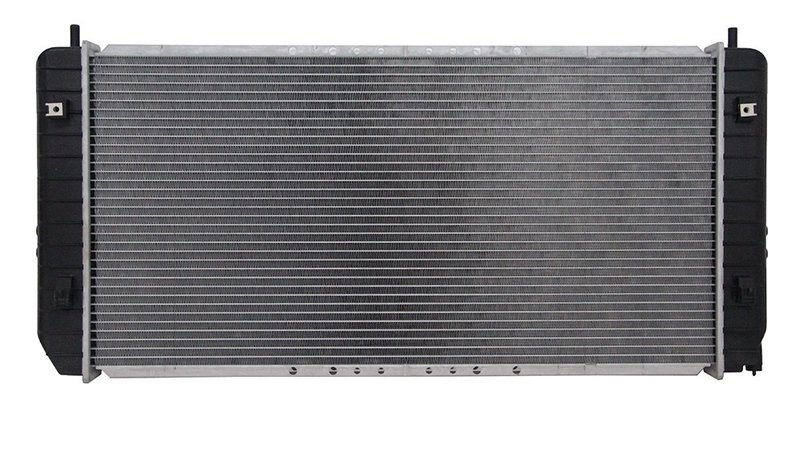

One Stop Solutions 2369 Radiator

Reliable Radiator Replacement for Cadillac DeVille

The One Stop Solutions radiator part number 2369 is designed specifically for Cadillac DeVille models, providing a direct replacement that ensures proper cooling system performance. Engineered with quality materials and precise dimensions, this radiator supports both engine and transmission oil cooling needs.

Key Features of One Stop Solutions Radiator 2369

• Core dimensions: 30 1/2" height, 15 1/16" width, and 1-1/4" thickness for efficient heat dissipation
• Crossflow design with premium grade plastic tanks and PA core material
• Includes plated transmission and engine oil coolers with fittings spaced 11 1/2" apart
• Inlet diameter 1 5/16" and outlet diameter 1 9/16" for proper coolant flow
• Drop-in fit with all necessary fittings and hardware for hassle-free installation
• Components fitted and torqued to factory specifications for reliable operation
• Tested multiple times during production to ensure consistent quality

Detailed Description of Radiator 2369

This radiator from One Stop Solutions is engineered to meet the cooling demands of Cadillac DeVille vehicles. Featuring a single-row core with a crossflow configuration, it optimizes airflow and heat exchange. The core is constructed from PA material, known for durability and corrosion resistance, while the plastic tanks reduce weight without compromising strength. Both the transmission and engine oil coolers are plated, enhancing heat transfer and longevity. The inlet and outlet headers measure 16 5/8" in length and 2 7/16" in width, ensuring compatibility with the vehicle's cooling system. This radiator is designed to replace the original equipment with exact fit, form, and function, maintaining the vehicle’s cooling efficiency and reliability.

Common Issues Addressed by This Radiator

• Overheating due to clogged or damaged radiator cores
• Transmission fluid overheating from faulty or missing oil coolers
• Leaks caused by cracked plastic tanks or worn seals
• Reduced cooling efficiency from corrosion or core damage
• Inadequate coolant flow from incorrect radiator dimensions

Installation Notes and Tips

• Ensure all fittings and hoses match the specified inlet and outlet diameters (1 5/16" inlet, 1 9/16" outlet)
• Verify transmission and engine oil cooler connections are properly secured with fittings spaced 11 1/2" apart
• Follow factory torque specifications when installing components to avoid leaks or damage
• Check for proper coolant levels and bleed air from the system after installation
• Use compatible coolant types recommended for Cadillac DeVille vehicles

Quality Assurance and Warranty Information

Each One Stop Solutions radiator 2369 undergoes up to three rounds of testing during production to ensure consistent performance and durability. Components are assembled to meet factory specifications, providing reliable operation in Cadillac DeVille cooling systems. While no cap is included, the radiator is designed for compatibility with original equipment caps. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
