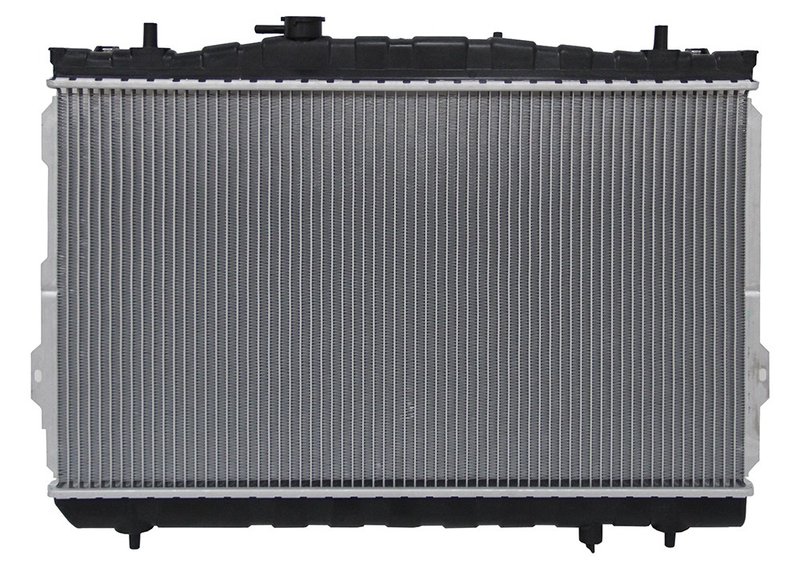

One Stop Solutions 2387 Radiator

Reliable Radiator Replacement for Hyundai Elantra and Tiburon

The One Stop Solutions radiator part number 2387 is designed specifically for Hyundai Elantra and Tiburon models. Engineered to meet original equipment specifications, this radiator ensures efficient cooling and reliable performance for your vehicle's engine and transmission system.

Key Features of One Stop Solutions Radiator 2387

• Hassle free installation with drop-in fit, form, and function
• O.E. performance and exceptional quality materials
• Engineering enhancements for improved cooling and extended service life
• Premium grade tubes, fins, headers, and plastic tanks
• Transmission oil cooler included with concentric design
• Components fitted and torqued to factory specifications
• 100% tested up to three times during production
• Downflow core design with a single core row

Detailed Radiator Specifications and Construction

This radiator features a core height of 14 3/4 inches, a core width of 25 7/8 inches, and a core thickness of 5/8 inch, providing optimal surface area for heat dissipation. The core is constructed from PA material, while the tanks are made of durable plastic. Both the inlet and outlet diameters measure 1 5/16 inches, with header lengths of 26 9/16 inches and header widths of 1 15/16 inches. The included transmission oil cooler uses a concentric type design with a 7/8 inch diameter and a fitting distance of 14 9/16 inches. This radiator is designed as a downflow type, facilitating efficient coolant flow through the system. Note that this model does not include an engine oil cooler or radiator cap.

Applications and Common Issues Addressed

• Replacement for leaking or damaged radiator cores in Hyundai Elantra and Tiburon
• Resolves overheating caused by clogged or inefficient cooling components
• Addresses transmission fluid temperature regulation with integrated oil cooler
• Fixes coolant leaks from cracked plastic tanks or headers
• Improves cooling system performance after original radiator failure

Installation Notes and Tips

Installation of the One Stop Solutions radiator 2387 is straightforward due to its drop-in design. Ensure all fittings and hardware are properly torqued to factory specifications to prevent leaks. Verify compatibility with your Hyundai Elantra or Tiburon model year before installation. The transmission oil cooler fittings should be connected carefully to avoid damage. No radiator cap is included, so reuse the existing cap or purchase separately if needed.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to ensure durability and performance. Components are assembled and torqued to meet factory standards. One Stop Solutions provides a limited warranty covering defects in materials and workmanship, supporting reliable operation for your Hyundai Elantra or Tiburon cooling system.
