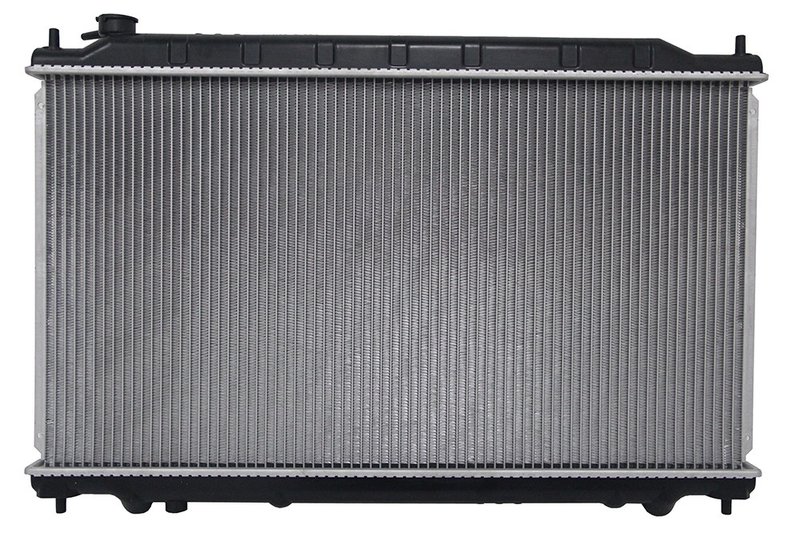

One Stop Solutions 2415 Radiator

Reliable Radiator Replacement for Nissan Altima and Maxima

The One Stop Solutions radiator part number 2415 is engineered to provide dependable cooling performance for Nissan Altima and Maxima models. Designed with precision, this radiator ensures efficient heat dissipation and supports transmission oil cooling for optimal vehicle operation.

Key Features of One Stop Solutions Radiator 2415

• Hassle free installation with drop-in fit, form, and function
• OE performance and quality with engineering enhancements for improved cooling and durability
• Premium grade core, tanks, tubes, and fins constructed from plastic and PA materials
• Includes concentric transmission oil cooler with 1-inch diameter and 13 3/4 inch fitting spacing
• Downflow core design with 1 core row, measuring 15 3/4 inches height, 28 11/16 inches width, and 5/8 inch thickness
• Inlet and outlet diameters of 1 3/8 inches with 2-inch header widths for efficient coolant flow
• Components fitted and torqued to factory specifications for reliable performance
• 100% tested up to three times during production to ensure quality and function

Detailed Radiator Specifications and Construction

This radiator features a downflow core design with a single core row, measuring 15 3/4 inches in height and 28 11/16 inches in width, providing effective heat exchange. The core thickness is 5/8 inch, made from PA (polyamide) material, which offers durability and resistance to corrosion. The plastic tanks complement the core, maintaining structural integrity under operating conditions. Both inlet and outlet headers measure 29 15/16 inches in length and 2 inches in width, accommodating 1 3/8 inch diameter hoses for seamless coolant circulation.

Additionally, the radiator includes a concentric transmission oil cooler with a 1-inch diameter and fittings spaced 13 3/4 inches apart, supporting transmission fluid temperature regulation. This radiator does not include an engine oil cooler, focusing solely on engine coolant and transmission oil cooling.

Compatible Vehicles and Common Applications

This radiator is compatible with Nissan Altima and Maxima models, providing a direct replacement solution for cooling system maintenance or repair. It is designed to address issues such as:

• Overheating due to radiator core damage or clogging
• Coolant leaks from cracked or worn plastic tanks
• Transmission fluid overheating caused by faulty or missing transmission oil coolers
• Reduced cooling efficiency from deteriorated fins or tubes
• Failure of original radiator components leading to engine performance issues

Installation Notes and Tips

Installation of the One Stop Solutions radiator 2415 is straightforward due to its drop-in design. Ensure all fittings and hardware are included and properly torqued to factory specifications. Verify hose diameters and header dimensions match your vehicle’s requirements. It is recommended to flush the cooling system before installation to prevent contamination. Check transmission oil cooler connections for secure fitment and absence of leaks.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to verify performance and durability. Components are assembled and torqued to meet factory standards, ensuring reliable operation. While specific warranty details are not provided, One Stop Solutions products are manufactured to meet OEM quality standards, supporting long-term service life in Nissan Altima and Maxima vehicles.
