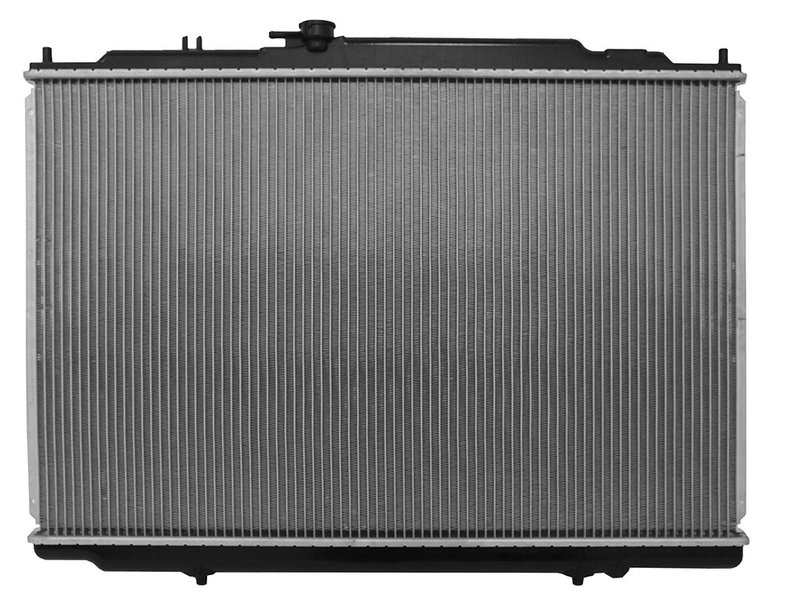

One Stop Solutions 2417 Radiator

Overview of One Stop Solutions Radiator 2417 for Acura MDX and Honda Pilot

The One Stop Solutions Radiator part number 2417 is designed specifically for Acura MDX and Honda Pilot models. This radiator offers a downflow core design with integrated transmission oil cooler, engineered to meet original equipment performance standards.

• Core dimensions: 19 11/16" height, 30 5/8" width, 5/8" (16 mm) thickness
• Core material constructed from PA for durability and heat dissipation
• Plastic tanks with inlet and outlet header lengths of 31 7/16"
• Includes concentric transmission oil cooler with 1 1/8" diameter and 14 3/4" fitting spacing
• Downflow design optimized for efficient coolant flow and heat exchange
• Drop-in fit with all necessary fittings and hardware included
• Tested up to three times during production for quality assurance

Technical Details and Features

This radiator features a single-row core with premium grade tubes, fins, headers, and plastic tanks engineered to factory specifications. The inlet and outlet diameters are both 1 1/4", ensuring compatibility with the cooling system of Acura MDX and Honda Pilot vehicles. The transmission oil cooler is concentric type, integrated within the radiator, providing efficient transmission fluid cooling without the need for additional components. The radiator does not include an engine oil cooler or cap.

Applications and Common Issues Addressed

• Replacement for leaking or damaged radiator in Acura MDX and Honda Pilot
• Resolves overheating caused by clogged or inefficient cooling cores
• Addresses transmission fluid overheating with built-in transmission oil cooler
• Fixes coolant leaks from cracked plastic tanks or headers
• Improves cooling system reliability and longevity in downflow radiator setups

Installation Notes and Tips

Installation of the One Stop Solutions Radiator 2417 is designed to be hassle-free with a direct drop-in fit. All components are pre-fitted and torqued to factory specifications, reducing installation time and ensuring proper sealing. It is recommended to inspect all hoses and clamps during installation and replace if necessary. Bleed the cooling system properly after installation to avoid air pockets and ensure optimal performance.

Quality Assurance and Warranty

Each radiator undergoes up to three quality tests during production to verify performance and durability. Engineering enhancements address original design weaknesses to improve cooling efficiency and extend service life. While a cap is not included, the radiator meets OE performance standards. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
