Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

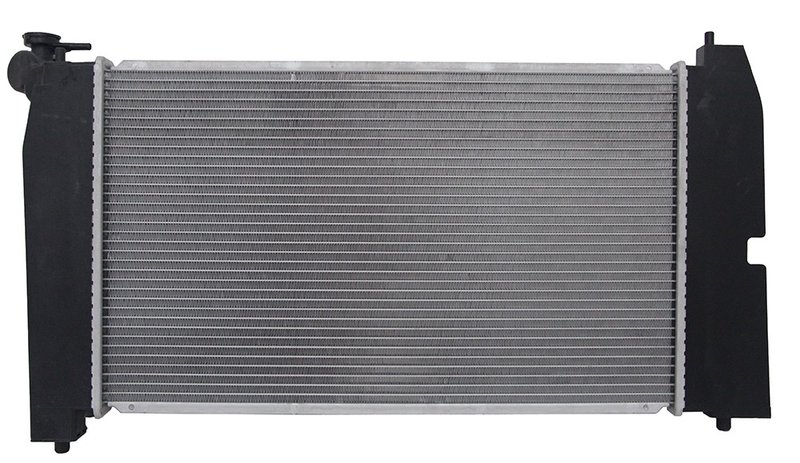

One Stop Solutions 2428 Radiator
| Brand | One Stop Solutions 2428 |
|---|---|
| Cap Included | NO |
| Core Height | 23 5/8 |
| Core Material | PA |
| Core Row Quantity | 1 |
| Core Thickness | 16 |
| Core Thickness | 5/8 |
| Core Width | 13 11/16 |
| Down Flow Or Cross Flow Type | CROSSFLOW |
| Engine Oil Cooler Included | NO |
| Engine Oil Cooler Type | NONE |
| Inlet Diameter | 1 5/16 |
| Inlet Header Length | 14 13/16 |
| Inlet Header Width | 1 7/16 |
| Outlet Diameter | 1 5/16 |
| Outlet Header Length | 14 13/16 |
| Outlet Header Width | 1 11/16 |
| Tank Material | PLASTIC |
| Transmission Oil Cooler Diameter | 3/4 |
| Transmission Oil Cooler Distance between Fittings | 7 7/8 |
| Transmission Oil Cooler Included | YES |
| Transmission Oil Cooler Type | CONCENTRIC |
| Fits | Pontiac and Toyota · 18 vehicles |
O.E. form and function. Built as a direct-fit radiator with hassle-free installation.
Premium aluminum construction. Cadmium-plated tubes help resist premature failure.
Pressure tested. Each unit is tested during production for dependable performance.
Cross-references APDI 8012428, Koyorad A2428 and Spectra Premium CU2428 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator for Corolla, Matrix, and Vibe
One Stop Solutions radiator Part Number 2428 is a crossflow replacement built for 2003-2008 Pontiac Vibe, 2003-2008 Toyota Corolla, and 2003-2008 Toyota Matrix applications. It uses premium-grade aluminum construction with plastic tanks and a concentric transmission oil cooler to support OE-style cooling performance.
- Fits 2003-2008 Pontiac Vibe, N/A
- Fits 2003-2008 Toyota Corolla, N/A
- Fits 2003-2008 Toyota Matrix, N/A
- Core height: 23 5/8 in.; core width: 13 11/16 in.; core thickness: 5/8 in.
- 1-row core design with 1 5/16 in. inlet and outlet diameters
- Transmission oil cooler included; engine oil cooler not included
- Concentric transmission cooler with 3/4 in. diameter and 7 7/8 in. fitting spacing
- Individually pressure tested during production
Built Around OE Form and Function
This OSC Premium New Automotive Radiator is engineered to match original equipment form and function while addressing common failure points found in higher-mileage cooling systems. The radiator uses cadmium-plated tubes, a die-cut gasket for sealing, and factory-spec fitted components to support a direct replacement installation. Part Number 2428 is also cross-referenced to Spectra Premium CU2428 for the same application.
Common Problems This Radiator Addresses
- Coolant leaks from aging radiator tanks, seams, or gasket surfaces
- Transmission fluid temperature concerns tied to a worn cooler circuit
- Reduced cooling efficiency from clogged or weakened core passages
- Heat-related stress in high-mileage Corolla, Matrix, and Vibe cooling systems
- Fitment issues caused by non-OE-style replacement dimensions
Installation Notes
Verify core dimensions, inlet and outlet sizes, and cooler line routing before installation. This radiator is a crossflow design and includes the transmission oil cooler, so cooler line connections should be checked against the vehicle’s original layout. Part Number 2428 is designed for drop-in fit, form, and function on the listed Toyota Corolla, Toyota Matrix, and Pontiac Vibe applications.
Quality Assurance
OSC tests the transmission and engine oil coolers before tank installation, checks the radiator core before assembly, and tests the completed unit again after assembly. The design also uses premium-grade tubes, fins, headers, and tanks to support durability and consistent cooling performance.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Pontiac | Vibe | 1.8L | L4 | N/A | — |
| 2008 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2008 | Toyota | Matrix | 1.8L | L4 | N/A | — |
| 2007 | Pontiac | Vibe | 1.8L | L4 | N/A | — |
| 2007 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2007 | Toyota | Matrix | 1.8L | L4 | N/A | — |
| 2006 | Pontiac | Vibe | 1.8L | L4 | N/A | — |
| 2006 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2006 | Toyota | Matrix | 1.8L | L4 | N/A | — |
| 2005 | Pontiac | Vibe | 1.8L | L4 | N/A | — |
| 2005 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2005 | Toyota | Matrix | 1.8L | L4 | N/A | — |
| 2004 | Pontiac | Vibe | 1.8L | L4 | N/A | — |
| 2004 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2004 | Toyota | Matrix | 1.8L | L4 | N/A | — |
| 2003 | Pontiac | Vibe | 1.8L | L4 | N/A | — |
| 2003 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2003 | Toyota | Matrix | 1.8L | L4 | N/A | — |
| No rows match your filter. | ||||||
