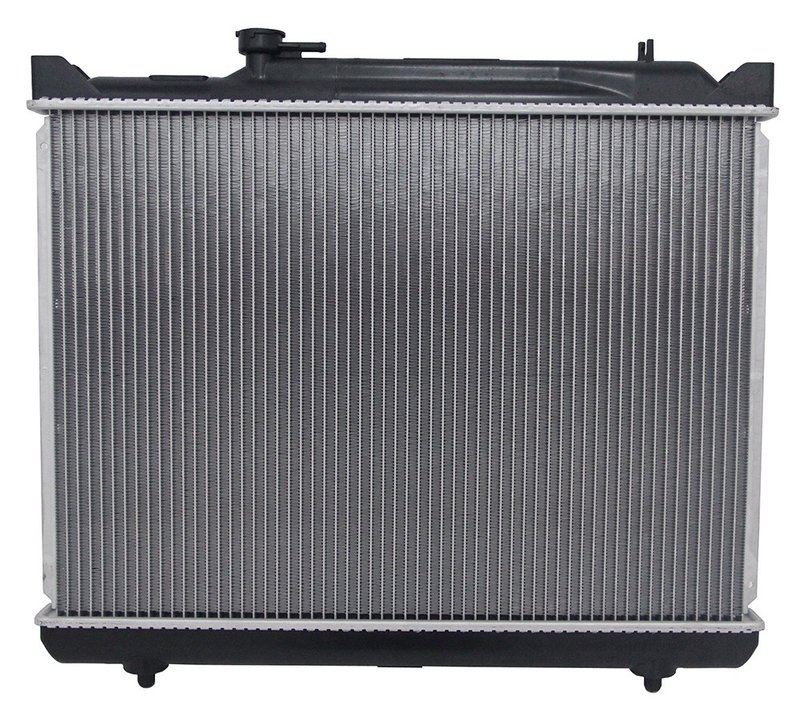

One Stop Solutions 2430 Radiator

Reliable Radiator Replacement for Suzuki Grand Vitara and XL-7

The One Stop Solutions radiator part number 2430 is designed specifically for Suzuki Grand Vitara and XL-7 models. Engineered to meet OE performance standards, this radiator ensures efficient cooling and durability for your vehicle's engine and transmission system.

• Hassle free installation with drop-in fit, form, and function
• Includes a concentric transmission oil cooler with 3/4 inch diameter fittings
• Core dimensions: 16 3/4 inches height, 23 1/8 inches width, and 1 inch thickness
• Plastic tanks and premium grade core materials for enhanced durability
• Downflow design optimized for Suzuki Grand Vitara and XL-7 cooling systems
• Components fitted and torqued to factory specifications
• 100% tested up to three times during production for quality assurance

Detailed Radiator Specifications and Features

This radiator features a single-row core constructed from premium PA material, measuring 16 3/4 inches in height, 23 1/8 inches in width, and 1 inch thick. The plastic tanks are designed to withstand typical operating conditions while maintaining a lightweight profile. Both inlet and outlet diameters are 1 5/16 inches, with header lengths of 24 9/16 inches and widths of 2 inches, ensuring compatibility with the Suzuki Grand Vitara and XL-7 cooling systems. The included concentric transmission oil cooler has fittings spaced 13 3/4 inches apart, supporting efficient transmission fluid cooling. This radiator does not include an engine oil cooler, focusing solely on engine and transmission cooling needs.

Common Applications and Problem Resolution

• Replacement for leaking or damaged radiators in Suzuki Grand Vitara and XL-7
• Solves overheating issues caused by clogged or inefficient cooling cores
• Addresses transmission fluid overheating with integrated oil cooler
• Resolves coolant leaks from cracked plastic tanks or headers
• Improves cooling efficiency after original radiator failure or degradation

Installation Notes and Tips

Installation of the One Stop Solutions radiator 2430 is straightforward due to its drop-in design. Ensure all fittings and hoses are properly connected to the 1 5/16 inch inlet and outlet ports. Verify the transmission oil cooler lines are securely attached to the concentric cooler fittings spaced 13 3/4 inches apart. Follow factory torque specifications when securing mounting points and fittings to maintain system integrity and prevent leaks.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to ensure reliability and performance. Components such as tubes, fins, headers, and tanks are manufactured from premium materials and assembled to meet factory specifications. The One Stop Solutions radiator 2430 is engineered with enhancements to address original design limitations, providing improved cooling and extended service life. Warranty coverage details should be confirmed with the product documentation or supplier.
