Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

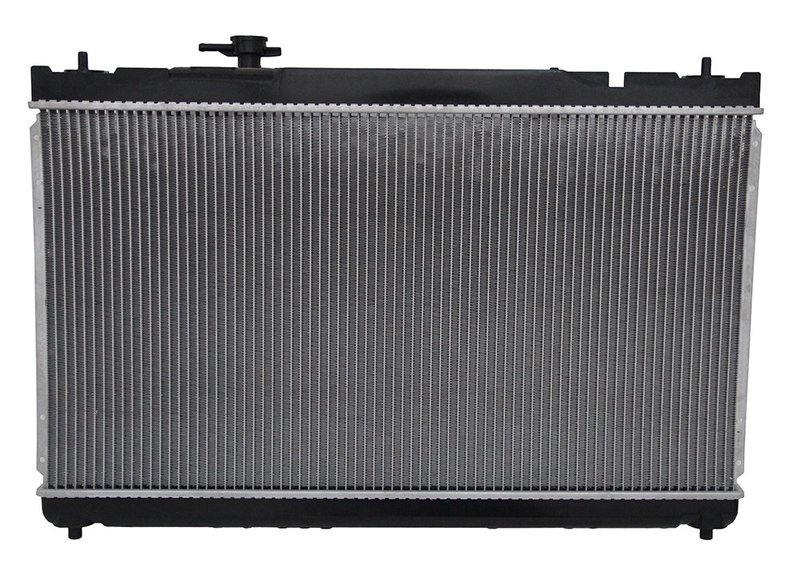

One Stop Solutions 2436 Radiator
| Brand | One Stop Solutions 2436 |
|---|---|
| Cap Included | NO |
| Core Height | 15 3/4 |
| Core Material | PA |
| Core Row Quantity | 1 |
| Core Thickness | 1 |
| Core Thickness | 26 |
| Core Width | 29 1/16 |
| Down Flow Or Cross Flow Type | DOWNFLOW |
| Engine Oil Cooler Included | NO |
| Engine Oil Cooler Type | NONE |
| Inlet Diameter | 1 3/8 |
| Inlet Header Length | 29 7/8 |
| Inlet Header Width | 2 1/16 |
| Outlet Diameter | 1 3/8 |
| Outlet Header Length | 29 7/8 |
| Outlet Header Width | 2 1/16 |
| Tank Material | PLASTIC |
| Transmission Oil Cooler Diameter | 1 1/8 |
| Transmission Oil Cooler Distance between Fittings | 14 3/4 |
| Transmission Oil Cooler Included | YES |
| Transmission Oil Cooler Type | CONCENTRIC |
| Fits | Toyota · 9 vehicles |
OES form and function. Engineered for a direct, drop-in radiator replacement.
Premium aluminum construction. Built with cadmium-plated tubes to help resist premature failure.
Individually pressure tested. Each radiator is checked for leaks before it leaves production.
Cross-references APDI 8012436, Dorman - HELP 56105 and Koyorad A2436 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator for Toyota Camry and Solara
Restore cooling performance with this OSC Premium new automotive radiator, part number 2436. It is built for direct replacement use on select Toyota Camry and Toyota Solara applications, with OES form and function for a clean fit and dependable heat transfer.
- Fits 2002-2006 Toyota Camry, N/A; 1" core; marked 0H13 on top tank
- Fits 2005-2008 Toyota Solara, N/A
- Downflow radiator design with plastic tanks and a PA core material
- Transmission oil cooler included with concentric cooler design
- Core dimensions: 15 3/4" height, 29 1/16" width, 1" thickness
- Inlet and outlet diameters: 1 3/8"
- Individually pressure tested during production
- Part number 2436 is engineered for multi-fit applications without changing the original look and fit
Detailed Product Overview
This OSC radiator is built with premium-grade aluminum construction and cadmium-plated tubes inside and out to help reduce premature failure. The unit uses a die-cut gasket for sealing, and the radiator core, transmission cooler, and assembled unit are tested during production to verify performance before installation. For Toyota Camry and Toyota Solara owners looking for a direct-fit cooling system replacement, part number 2436 provides an OE-style solution with the correct header, tank, and cooler layout.
This part cross-references Spectra Premium CU2436 for the same application.
Common Cooling Issues It Can Address
- Coolant leaks from a worn or damaged radiator tank, core, or seal area
- Transmission fluid temperature concerns related to an aging integrated cooler
- Reduced cooling efficiency from clogged, corroded, or fatigued radiator passages
- Fitment problems caused by a replacement radiator that does not match OE dimensions
- Heat-related drivability issues in higher-mileage Toyota Camry and Toyota Solara vehicles
Installation Notes and Tips
Verify the top tank marking, core thickness, inlet and outlet sizes, and cooler layout before installation. This radiator is designed for direct replacement use on the listed Toyota Camry and Toyota Solara applications, and the factory-style fit helps simplify installation. Flush the cooling system, inspect hoses and clamps, and confirm transmission cooler line routing before final assembly.
Quality Assurance
OSC builds this radiator to OES form and function and tests the cooler and assembled radiator during production. The design includes engineering updates aimed at improving durability and cooling performance in higher-mileage vehicles.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Toyota | Solara | 2.4L | L4 | N/A | — |
| 2007 | Toyota | Solara | 2.4L | L4 | N/A | — |
| 2006 | Toyota | Camry | 2.4L | L4 | N/A | 1" Core; Marked 0H13 on top tank |
| 2006 | Toyota | Solara | 2.4L | L4 | N/A | — |
| 2005 | Toyota | Camry | 2.4L | L4 | N/A | 1" Core; Marked 0H13 on top tank |
| 2005 | Toyota | Solara | 2.4L | L4 | N/A | — |
| 2004 | Toyota | Camry | 2.4L | L4 | N/A | 1" Core; Marked 0H13 on top tank |
| 2003 | Toyota | Camry | 2.4L | L4 | N/A | 1" Core; Marked 0H13 on top tank |
| 2002 | Toyota | Camry | 2.4L | L4 | N/A | 1" Core; Marked 0H13 on top tank |
