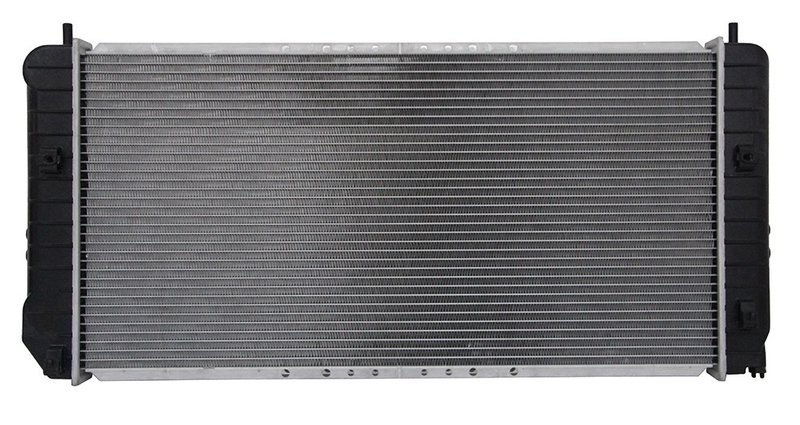

One Stop Solutions 2513 Radiator

Reliable Radiator Replacement for Cadillac Seville

The One Stop Solutions radiator part number 2513 is designed specifically for Cadillac Seville models, providing a direct fit replacement that supports optimal engine cooling. Engineered with quality materials and enhanced design features, this radiator ensures consistent performance and durability.

Key Features of One Stop Solutions Radiator 2513

• Hassle free installation with drop-in fit, form, and function
• OE performance and exceptional quality standards
• Engineering enhancements for improved cooling efficiency and extended service life
• Premium grade core materials including plastic tanks and PA core
• Includes a plated transmission oil cooler with fittings spaced 11 1/2 inches apart
• Crossflow design with a single core row for effective heat dissipation
• Components fitted and torqued to factory specifications
• 100% tested up to three times during production for reliability

Detailed Radiator Specifications and Design

This radiator features a core height of 30 1/2 inches, core width of 15 1/16 inches, and a core thickness of 1-1/4 inches, optimized for the Cadillac Seville cooling system. The crossflow core design enhances coolant flow and heat exchange efficiency. The core is constructed from PA material, paired with durable plastic tanks to resist corrosion and wear. Both inlet and outlet headers measure 16 5/8 inches in length and 2 7/16 inches in width, with inlet and outlet diameters of 1 5/16 inches and 1 9/16 inches respectively. A plated transmission oil cooler is integrated, supporting transmission fluid cooling with fittings spaced 11 1/2 inches apart. This radiator does not include an engine oil cooler or cap.

Applications and Common Issues Addressed

• Replacement for leaking or damaged radiator in Cadillac Seville
• Resolves overheating caused by inefficient or clogged radiator cores
• Addresses transmission fluid overheating with integrated transmission oil cooler
• Fixes coolant leaks from cracked plastic tanks or headers
• Improves cooling system performance after original radiator failure

Installation Notes and Tips

Installation of the One Stop Solutions radiator 2513 is straightforward due to its drop-in design tailored for Cadillac Seville models. Ensure all factory fittings and hoses are properly connected and torqued to manufacturer specifications. Verify transmission oil cooler lines are securely attached to prevent leaks. Bleed the cooling system thoroughly after installation to remove air pockets and maintain optimal coolant flow.

Quality Assurance and Testing

Each radiator undergoes rigorous testing up to three times during production to ensure durability and performance consistency. Components are assembled and torqued to factory specifications to maintain OEM standards. While no warranty information is explicitly provided, the product is engineered to meet or exceed original equipment requirements for the Cadillac Seville.
