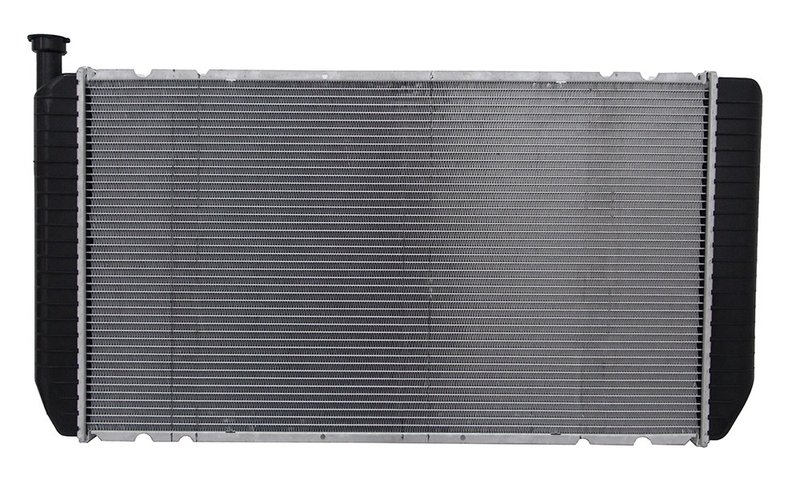

One Stop Solutions 2533 Radiator

Reliable Radiator Replacement for Chevrolet Silverado 3500

The One Stop Solutions radiator part number 2533 is engineered to provide dependable cooling performance for Chevrolet Silverado 3500 trucks. Designed with precision, this radiator ensures efficient heat dissipation and supports both engine and transmission oil cooling needs.

Key Features of One Stop Solutions Radiator 2533

• Hassle free installation for quick replacement
• OE performance and quality standards met
• Engineering enhancements improve cooling efficiency and durability
• Components fitted and torqued to factory specifications
• Premium grade tubes, fins, headers, and plastic tanks
• Drop-in fit, form, and function with all necessary fittings
• Complete radiator tested up to three times during production
• Design improvements address original equipment design limitations

Detailed Radiator Specifications and Construction

This radiator features a crossflow design with a core height of 34 1/8 inches, core width of 19 7/16 inches, and a core thickness of 2-3/16 inches. The core is constructed from premium PA material, while the tanks are made of durable plastic. It includes a two-row core configuration to optimize cooling capacity. Both inlet and outlet headers measure 20 11/16 inches in length and 3 1/8 inches in width, ensuring proper fluid flow. The inlet diameter is 1 3/8 inches and the outlet diameter is 1 9/16 inches, designed to match factory specifications.

Additionally, this radiator incorporates a plated transmission oil cooler and a plated engine oil cooler, both with fittings spaced 11 1/2 inches apart. These integrated coolers help maintain optimal operating temperatures for transmission and engine oil, enhancing overall vehicle performance and longevity.

Common Applications and Problem Solving

• Replacement for leaking or damaged radiators in Chevrolet Silverado 3500
• Resolves overheating issues caused by inefficient cooling systems
• Addresses transmission fluid overheating with integrated oil cooler
• Improves engine oil temperature regulation for better engine health
• Fixes radiator core damage or corrosion affecting coolant flow

Installation Notes and Tips

The One Stop Solutions radiator 2533 is designed as a direct replacement for Chevrolet Silverado 3500 models, providing a drop-in fit that matches original equipment dimensions and connections. Ensure all fittings and hoses are properly connected and torqued to factory specifications during installation. Verify that the transmission and engine oil cooler lines are securely attached to prevent leaks. Bleed the cooling system thoroughly after installation to remove air pockets and maintain optimal cooling performance.

Quality Assurance and Testing

Each radiator undergoes rigorous testing up to three times during production to ensure reliability and performance. Components are assembled and torqued to meet factory standards, and engineering enhancements have been incorporated to improve cooling efficiency and extend service life. While no specific warranty information is provided, the product is manufactured to meet OE quality and durability requirements for Chevrolet Silverado 3500 applications.
