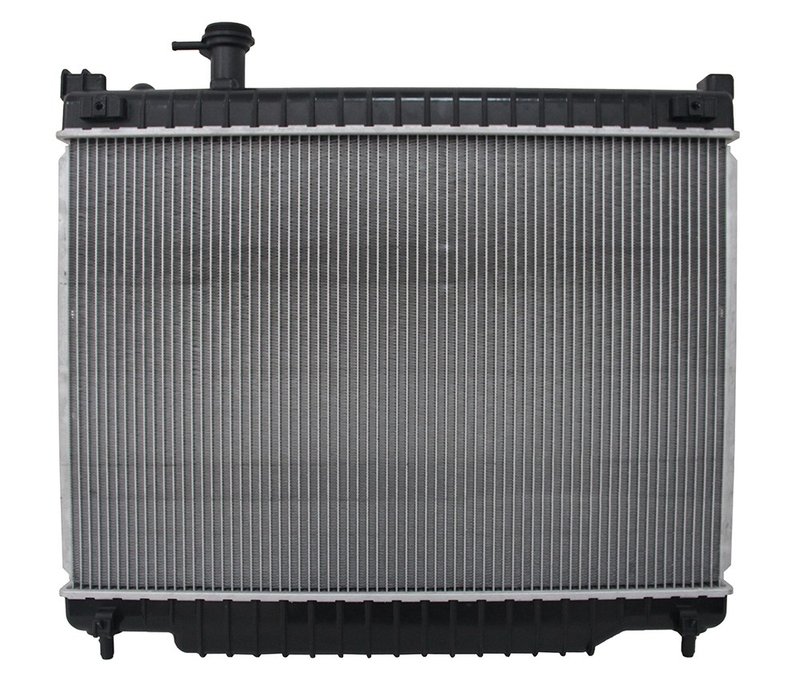

One Stop Solutions 2563 Radiator

Reliable Radiator Replacement for Buick, Chevrolet, GMC, Isuzu, and Saab

The One Stop Solutions radiator part number 2563 is engineered to provide dependable cooling performance for select Buick, Chevrolet, GMC, Isuzu, and Saab models. Designed as a direct replacement, this radiator supports optimal engine temperature management and includes a transmission oil cooler for enhanced vehicle operation.

Key Features of One Stop Solutions Radiator 2563

• Hassle-free installation with drop-in fit, form, and function
• OE performance with engineering enhancements for improved cooling and durability
• Premium grade core materials including plastic tanks and PA core
• Includes plated transmission oil cooler with fittings spaced 11 1/2 inches apart
• Core dimensions: 18 1/8" height, 26 11/16" width, 1" thickness
• Downflow design with 1 5/16" inlet and 1 9/16" outlet diameters
• Components fitted and torqued to factory specifications
• 100% tested up to three times during production for quality assurance

Detailed Radiator Specifications and Design

This radiator features a single-row core constructed from PA material, measuring 18 1/8 inches in height, 26 11/16 inches in width, and 1 inch in thickness, optimized for efficient heat dissipation. The plastic tanks contribute to weight reduction while maintaining durability. The downflow core design supports effective coolant flow through the engine. Both inlet and outlet headers measure 27 1/2 inches in length and 2 5/16 inches in width, ensuring compatibility with the specified vehicle models. The radiator includes a plated transmission oil cooler with fittings spaced 11 1/2 inches apart, enhancing transmission fluid cooling. This radiator does not include an engine oil cooler or cap.

Compatible Vehicles and Common Applications

This radiator is compatible with the following makes and models:

• Buick 9-7x
• Chevrolet Trailblazer, Trailblazer EXT
• GMC Envoy, Envoy XL, Envoy XUV, Rainier
• Isuzu Ascender
• Saab 9-7x

It is designed to address issues such as:

• Overheating due to radiator core damage or clogging
• Transmission fluid overheating requiring integrated cooler replacement
• Leaks or cracks in plastic tanks or headers
• Reduced cooling efficiency from worn or corroded components
• Failure of original radiator causing engine temperature fluctuations

Installation Notes and Tips

The One Stop Solutions radiator 2563 is designed for a direct drop-in replacement, requiring no modifications. All necessary fittings and hardware are included or compatible with factory components. It is recommended to inspect hoses and clamps during installation and replace if necessary. Ensure proper torque specifications are followed when securing components to maintain factory standards.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to ensure reliability and performance. Components are assembled and torqued to factory specifications to maintain quality standards. While specific warranty details are not provided, One Stop Solutions products typically meet or exceed OEM quality requirements for durability and fitment.
