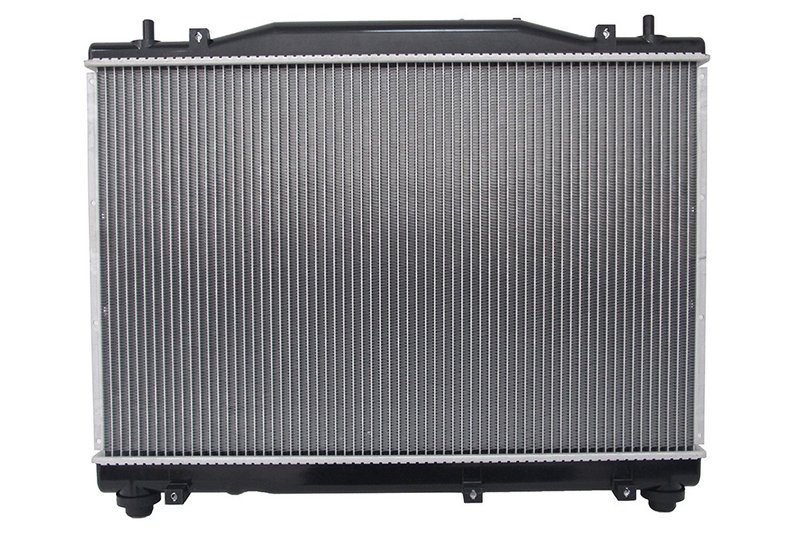

One Stop Solutions 2565 Radiator
| Brand | One Stop Solutions 2565 |
|---|---|
| Cap Included | NO |
| Core Height | 16 3/4 |
| Core Material | PA |
| Core Row Quantity | 1 |
| Core Thickness | 1 |
| Core Thickness | 26 |
| Core Width | 25 7/8 |
| Down Flow Or Cross Flow Type | DOWNFLOW |
| Engine Oil Cooler Included | NO |
| Engine Oil Cooler Type | NONE |
| Inlet Diameter | 1 3/8 |
| Inlet Header Length | 26 7/8 |
| Inlet Header Width | 2 |
| Outlet Diameter | 1 3/8 |
| Outlet Header Length | 26 7/8 |
| Outlet Header Width | 2 |
| Tank Material | PLASTIC |
| Transmission Oil Cooler Distance between Fittings | 14 3/4 |
| Transmission Oil Cooler Included | YES |
| Transmission Oil Cooler Type | PLATED |
| Fits | Cadillac · 2 vehicles |
O.E. form and function. Engineered as a direct-fit radiator with hassle-free installation.
Premium aluminum construction. Cadmium-plated tubes help resist premature failure and leaks.
Pressure tested. Each radiator is checked during production for dependable performance.
Cross-references Spectra Premium CU2565, 8012565 and 19259455 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator for 2003-2004 Cadillac CTS
Replace a worn or leaking cooling unit with this OSC Premium New Automotive Radiator, part number 2565. It is built for the 2003-2004 Cadillac CTS and follows OES form and function for a direct-fit cooling system repair.
- Fits 2003-2004 Cadillac CTS, N/A
- Premium-grade aluminum construction with plastic tanks
- Downflow design with one-row core layout
- Transmission oil cooler included with plated cooler type
- Core dimensions: 16 3/4 in. height, 25 7/8 in. width, 1 in. thickness
- 1 3/8 in. inlet and outlet diameters
- Die-cut gasket design for leak resistance
- Individually pressure tested during production
Product Details
OSC part number 2565 is engineered as a direct replacement radiator for the Cadillac CTS 2003-2004 application. The radiator uses premium aluminum tubes and fins with plastic tanks, and the tubes are cadmium plated inside and out to help resist premature failure. The unit is built to factory-style fitment and includes the transmission oil cooler where originally equipped. This radiator cross-references Spectra Premium CU2565 for the same application.
Common Cooling System Issues
- Coolant leaks from a cracked tank, seam, or gasket area
- Overheating caused by restricted coolant flow or reduced heat transfer
- Transmission temperature concerns related to a failing cooler circuit
- Fitment problems after replacing a damaged original radiator
- Cooling performance loss on higher-mileage Cadillac CTS vehicles
Installation Notes
Verify inlet and outlet sizing, header dimensions, and cooler line spacing before installation. Transfer any required fittings or hardware from the original setup only if needed for your application. Confirm that the radiator matches the original downflow configuration and transmission cooler layout on your Cadillac CTS before final assembly.
Quality Assurance
Each OSC radiator is pressure tested during production, with cooler circuits checked before tank installation and the completed assembly tested again. The design also incorporates engineering updates such as improved fin density and enhanced cooling capacity to address common failure points in higher-mileage vehicles. Part number 2565 is built to meet original-equipment-style cooling requirements for the listed Cadillac CTS fitment.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Cadillac | CTS | 3.2L | V6 | N/A | — |
| 2003 | Cadillac | CTS | 3.2L | V6 | N/A | — |
