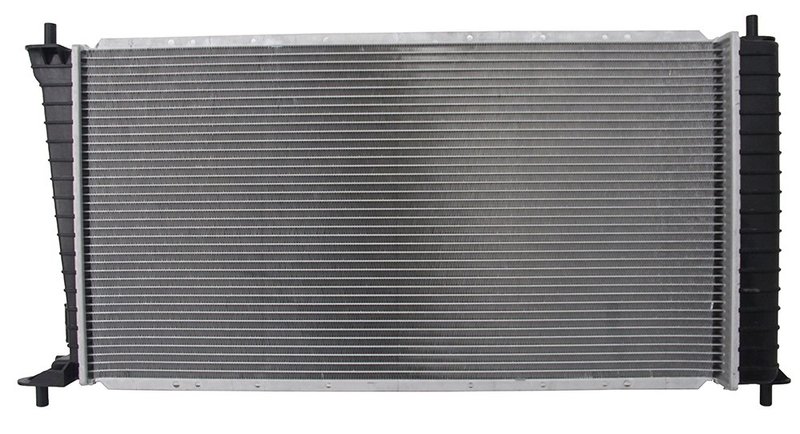

One Stop Solutions 2596 Radiator

Overview of One Stop Solutions Radiator 2596 for Ford F-150

The One Stop Solutions radiator part number 2596 is designed specifically for Ford F-150 and F-150 Heritage models. Engineered to provide reliable cooling performance, this radiator features a crossflow design and includes a transmission oil cooler to support your vehicle's cooling system needs.

• Hassle free installation for quick replacement
• OE performance with engineering enhancements for improved cooling
• Premium grade core and tank materials for durability
• Includes plated transmission oil cooler with fittings spaced 12 inches apart
• Drop-in fit with all necessary fittings and hardware included
• Tested up to three times during production for quality assurance
• Components fitted and torqued to factory specifications

Detailed Radiator Specifications and Features

This One Stop Solutions radiator (part number 2596) features a core height of 31 7/8 inches, core width of 16 13/16 inches, and a core thickness of 1 inch, providing efficient heat dissipation. The core is constructed from PA material, while the tanks are made of durable plastic. The radiator is designed with a crossflow configuration to optimize coolant flow and heat exchange.

Both the inlet and outlet headers measure 17 5/16 inches in length, with inlet header width at 1 15/16 inches and outlet header width at 3 1/8 inches. The inlet and outlet diameters are both 1 3/4 inches, ensuring compatibility with the Ford F-150 cooling system. The radiator includes a plated transmission oil cooler with fittings spaced 12 inches apart, but does not include an engine oil cooler or radiator cap.

Compatible Vehicles and Applications

This radiator is compatible with the following Ford models:

• Ford F-150
• Ford F-150 Heritage

It is designed to replace the original radiator and transmission oil cooler assembly, providing a direct fit and maintaining factory cooling system performance.

Common Issues Addressed by Radiator 2596

• Overheating due to radiator core damage or clogging
• Coolant leaks from cracked or worn plastic tanks
• Transmission fluid overheating from faulty or missing transmission oil cooler
• Reduced cooling efficiency from original design limitations
• Corrosion or deterioration of radiator tubes and fins

Installation Notes and Tips

The One Stop Solutions radiator 2596 is designed for a drop-in replacement, making installation straightforward. All necessary fittings and hardware are included to match factory specifications. It is recommended to drain the coolant and transmission fluid before removal, inspect hoses and clamps for wear, and ensure proper torque on all fittings during installation to prevent leaks.

Quality Assurance and Warranty Information

Each radiator undergoes up to three quality tests during production to ensure reliability and performance. Components are fitted and torqued to factory specifications to maintain OE standards. While specific warranty details are not provided, One Stop Solutions products are manufactured to meet or exceed industry standards for durability and function.
