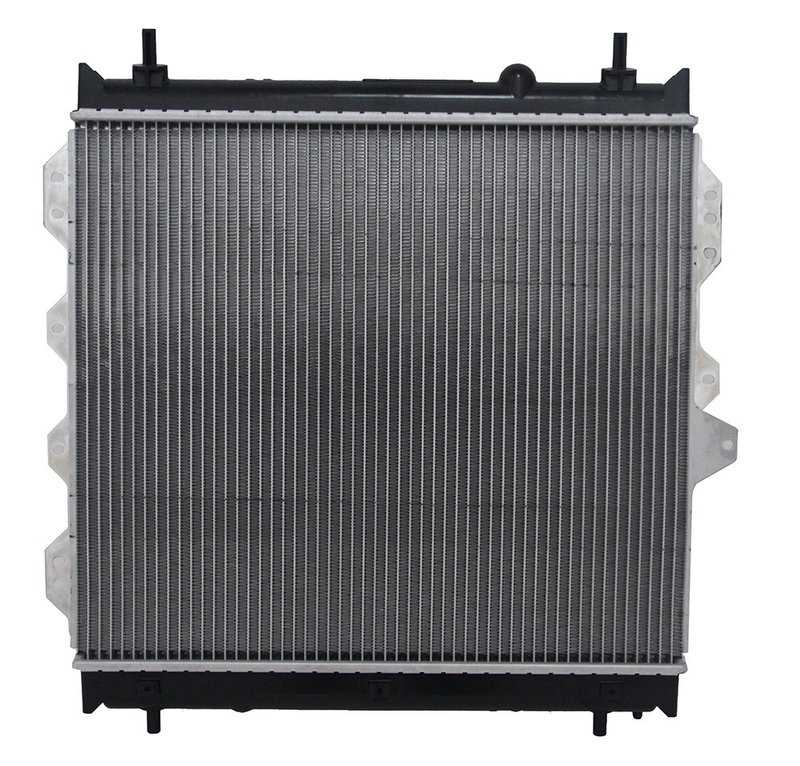

One Stop Solutions 2677 Radiator

Reliable Radiator Replacement for Chrysler PT Cruiser

The One Stop Solutions radiator, part number 2677, is designed specifically for Chrysler PT Cruiser models. Engineered to meet original equipment specifications, this radiator ensures efficient engine cooling and transmission oil temperature regulation for your vehicle.

Key Features of One Stop Solutions Radiator 2677

• Hassle free installation with drop-in fit, form, and function
• O.E. performance with premium grade tubes, fins, headers, and tanks
• Engineering enhancements for improved cooling and extended service life
• Transmission oil cooler included with concentric type and 3/4" diameter
• Plastic tank material combined with a PA core for durability
• Core dimensions: 18 1/8" height, 20 13/16" width, and 1" thickness
• Downflow design with one core row for optimized coolant flow
• Components fitted and torqued to factory specifications
• 100% tested up to three times during production for quality assurance

Detailed Description of Radiator 2677 for PT Cruiser

This radiator features a downflow core design measuring 18 1/8 inches in height, 20 13/16 inches in width, and 1 inch in thickness, constructed from PA core material for effective heat dissipation. The plastic tanks provide corrosion resistance and weight savings. Both inlet and outlet headers measure 20 15/16 inches in length and 2 1/8 inches in width, ensuring proper coolant flow. The radiator includes a concentric transmission oil cooler with a 3/4 inch diameter and 12 13/16 inch distance between fittings, supporting transmission fluid cooling without an engine oil cooler. The inlet diameter is 1 5/16 inches, and the outlet diameter is 1 3/8 inches, matching factory specifications for the Chrysler PT Cruiser. This radiator is engineered to replace the original unit with a direct fit, maintaining the vehicle’s cooling system integrity.

Common Issues Addressed by This Radiator

• Overheating due to clogged or damaged radiator core
• Transmission fluid overheating from faulty or missing transmission oil cooler
• Coolant leaks from cracked or worn plastic tanks
• Reduced cooling efficiency caused by corrosion or bent fins
• Engine performance issues related to inadequate heat dissipation

Installation Notes and Tips

• Ensure all fittings and hardware are included and properly torqued to factory specifications
• Drain coolant and transmission fluid before removal to avoid spills
• Inspect hoses and clamps for wear and replace if necessary during installation
• Verify inlet and outlet hose diameters match the radiator connections (1 5/16" inlet, 1 3/8" outlet)
• Test the cooling system for leaks and proper flow after installation

Quality Assurance and Warranty Information

Each One Stop Solutions radiator 2677 undergoes rigorous testing up to three times during production to ensure reliability and performance. Components are engineered with enhancements to address original design limitations and extend service life. While a cap is not included, the radiator meets or exceeds factory standards for fit and function. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
