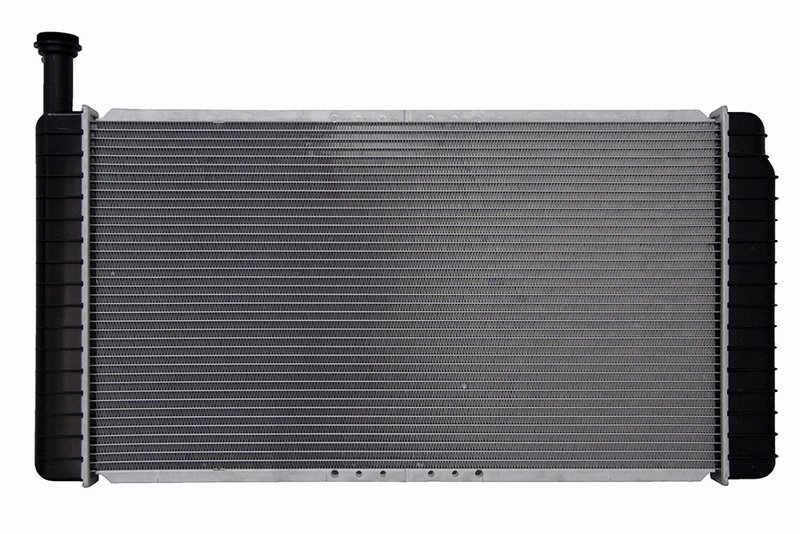

One Stop Solutions 2712 Radiator

Overview of One Stop Solutions Radiator 2712

The One Stop Solutions Radiator part number 2712 is designed for reliable cooling performance in Chevrolet Express 1500, Express 2500, GMC Savana 1500, and Savana 2500 models. This radiator features a crossflow design and includes a transmission oil cooler to support efficient engine and transmission temperature management.

• Hassle free installation with drop-in fit, form, and function
• OE performance with engineering enhancements for improved cooling and durability
• Premium grade core materials including plastic tanks and PA core
• Includes plated transmission oil cooler with 11 1/2 inch fitting spacing
• Core dimensions: 30 1/2" height, 17 1/4" width, 1" thickness
• Crossflow core type with one row for optimized heat dissipation
• Fittings and components torqued to factory specifications

Detailed Radiator Specifications and Features

This radiator is constructed with a PA core material and plastic tanks, providing a balance of durability and weight savings. The core measures 30 1/2 inches in height, 17 1/4 inches in width, and 1 inch in thickness, with a single core row designed for crossflow cooling. Both inlet and outlet headers measure 18 3/4 inches in length and 2 7/16 inches in width, supporting inlet and outlet diameters of 1 5/16 inches and 1 9/16 inches respectively. The radiator includes a plated transmission oil cooler with fittings spaced 11 1/2 inches apart, but does not include an engine oil cooler or radiator cap.

Compatible Vehicles and Applications

This radiator is compatible with the following vehicles:

• Chevrolet Express 1500
• Chevrolet Express 2500
• GMC Savana 1500
• GMC Savana 2500

It is engineered to replace original equipment radiators in these models, ensuring proper fit and function for effective engine and transmission cooling.

Common Issues Addressed by Radiator 2712

• Overheating due to inefficient or damaged radiator cores
• Transmission fluid overheating from faulty or missing transmission oil coolers
• Leaks or cracks in plastic tanks or headers
• Reduced cooling capacity from clogged or corroded fins and tubes
• Failure of original design components leading to premature radiator wear

Installation Notes and Tips

The One Stop Solutions Radiator 2712 is designed for a direct drop-in replacement, requiring no modifications. All necessary fittings and hardware are included or compatible with factory components. It is recommended to verify hose and fitting sizes (inlet diameter 1 5/16 inches, outlet diameter 1 9/16 inches) before installation. Proper torque specifications should be followed to ensure leak-free connections and optimal performance.

Quality Assurance and Warranty

Each radiator undergoes up to three quality tests during production to ensure reliability and performance. Components are assembled and torqued to factory specifications. While specific warranty details are not provided, One Stop Solutions products are manufactured to meet or exceed OEM standards, supporting long-term durability and consistent cooling efficiency.
