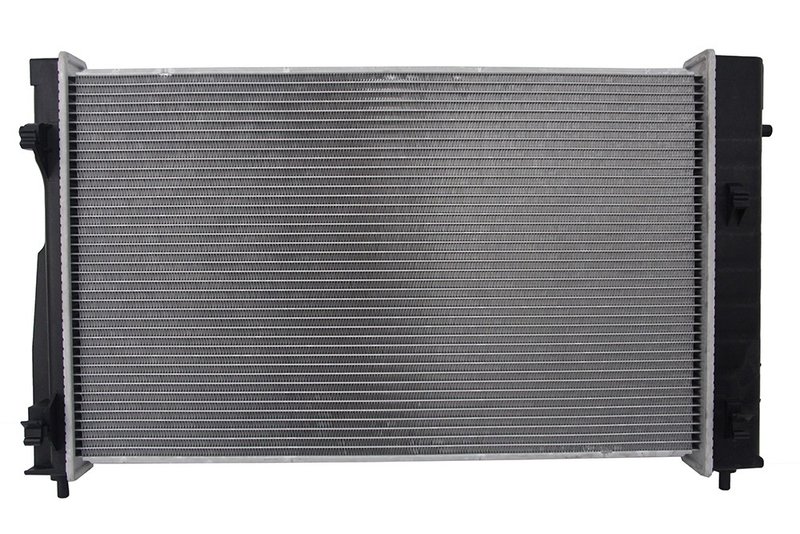

One Stop Solutions 2754 Radiator

Reliable Radiator Replacement for Pontiac GTO

The One Stop Solutions radiator part number 2754 is designed specifically for Pontiac GTO models, providing a direct replacement that ensures proper cooling system performance. Engineered with quality materials and precise dimensions, this radiator supports efficient heat dissipation and transmission oil cooling.

Key Features of One Stop Solutions Radiator 2754

• Core dimensions: 26 1/2" height, 16 1/16" width, and 1-1/4" thickness for optimal cooling capacity
• Crossflow design enhances coolant flow and heat exchange efficiency
• Includes a plated transmission oil cooler with fittings spaced 11 1/2" apart
• Plastic tanks and premium grade core materials for durability and corrosion resistance
• Drop-in fit with all necessary fittings and hardware included for hassle-free installation
• Tested up to three times during production to ensure quality and reliability
• Engineering improvements address original design issues for longer service life

Detailed Description and Specifications

This One Stop Solutions radiator (part number 2754) features a single-row core constructed from premium grade materials, including a PA core and plastic tanks. The core measures 26 1/2 inches in height, 16 1/16 inches in width, and 1-1/4 inches in thickness, designed to fit the cooling requirements of the Pontiac GTO. The crossflow configuration promotes efficient coolant circulation, reducing engine operating temperatures.

Both inlet and outlet diameters are 1 3/8 inches, with inlet and outlet header lengths of 18 inches and widths of approximately 2 7/16 inches and 2 15/16 inches respectively. The radiator includes a plated transmission oil cooler, enhancing transmission fluid cooling without the need for an engine oil cooler. All components are factory fitted and torqued to specifications, ensuring a reliable and precise fit.

Common Applications and Problem Resolution

• Replacement for leaking or damaged radiator cores in Pontiac GTO vehicles
• Solves overheating issues caused by inefficient or clogged radiators
• Addresses transmission fluid overheating with integrated transmission oil cooler
• Resolves coolant leaks from cracked plastic tanks or worn seals
• Improves cooling system performance after original radiator failure or degradation

Installation Notes and Tips

• Designed as a direct replacement for Pontiac GTO radiators, ensuring compatibility
• Includes all necessary fittings and hardware for a straightforward installation
• Verify hose and fitting sizes (1 3/8" inlet/outlet) before installation
• Ensure proper torque settings on all fittings to prevent leaks
• Flush cooling system prior to installation to maintain radiator efficiency

Quality Assurance and Warranty Information

Each One Stop Solutions radiator 2754 undergoes rigorous testing up to three times during production to verify performance and durability. Components are assembled to factory specifications, with engineering enhancements to improve lifespan and cooling efficiency. While specific warranty details are not provided, the product is manufactured to meet OE performance standards for Pontiac GTO applications.
