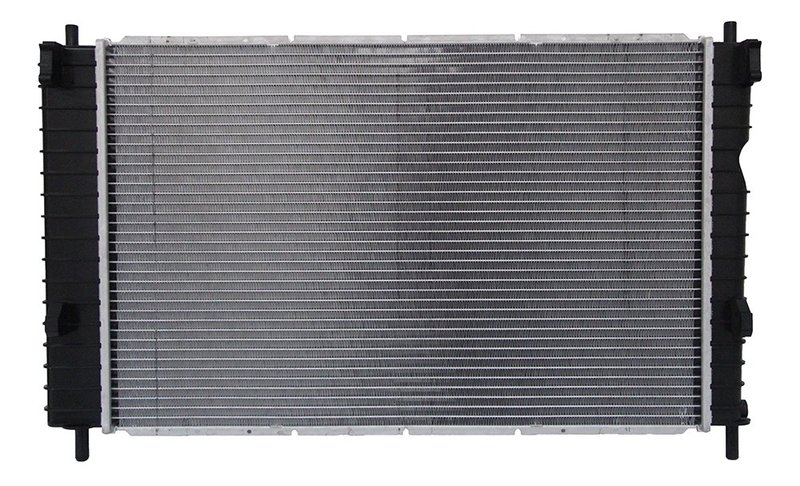

One Stop Solutions 2764 Radiator

Reliable Radiator Replacement for Chevrolet Equinox

The One Stop Solutions radiator part number 2764 is designed specifically for Chevrolet Equinox models, providing a direct replacement that ensures proper cooling system performance. Engineered with quality materials and precise dimensions, this radiator supports efficient heat dissipation and transmission oil cooling.

• Hassle free installation with drop-in fit, form, and function
• OE performance with premium grade tubes, fins, headers, and tanks
• Engineering enhancements improve cooling efficiency and extend service life
• Includes a plated transmission oil cooler with fittings spaced 12 inches apart
• Core dimensions: 26" height, 16 13/16" width, and 1" thickness for optimal heat exchange
• Plastic tanks and PA core material for durability and corrosion resistance
• Crossflow design with 1 5/16" inlet and outlet diameters for proper coolant flow
• Tested up to three times during production to ensure quality and reliability

Detailed Radiator Specifications and Features

This radiator features a single-row core with a crossflow configuration, measuring 26 inches in height and 16 13/16 inches in width. The core thickness is 1 inch, constructed from PA material, which offers a balance of strength and thermal conductivity. Both inlet and outlet headers measure 17 5/16 inches in length, with widths of 1 15/16 inches and 3 1/8 inches respectively. The radiator includes a plated transmission oil cooler with fittings spaced 12 inches apart, supporting efficient transmission fluid cooling. Plastic tanks provide resistance to corrosion and reduce overall weight. The inlet and outlet diameters are both 1 5/16 inches, matching factory specifications for the Chevrolet Equinox cooling system. This radiator does not include an engine oil cooler or cap.

Compatible Vehicles and Applications

This radiator is compatible with Chevrolet Equinox models requiring part number 2764. It is designed to replace the original radiator and transmission oil cooler assembly, ensuring proper fit and function.

• Overheating issues due to radiator core damage or clogging
• Transmission fluid overheating caused by faulty or inefficient coolers
• Leaks or cracks in plastic tanks or core tubes
• Reduced cooling efficiency from corrosion or physical damage
• Failure of original radiator components leading to engine or transmission damage

Installation Notes and Tips

Installation of the One Stop Solutions radiator 2764 is straightforward due to its drop-in design. All necessary fittings and hardware are included or compatible with factory components. It is recommended to inspect hoses and clamps during installation and replace if worn. Ensure proper torque specifications are followed when securing components to avoid leaks or damage. Bleed the cooling system thoroughly after installation to remove air pockets and verify proper coolant flow.

Quality Assurance and Warranty Information

Each radiator undergoes up to three quality tests during production to verify performance and durability. Components are fitted and torqued to factory specifications to maintain reliability. The radiator incorporates engineering enhancements to address original design weaknesses and improve lifespan. Warranty details are provided by One Stop Solutions and typically cover defects in materials and workmanship under normal use conditions.
