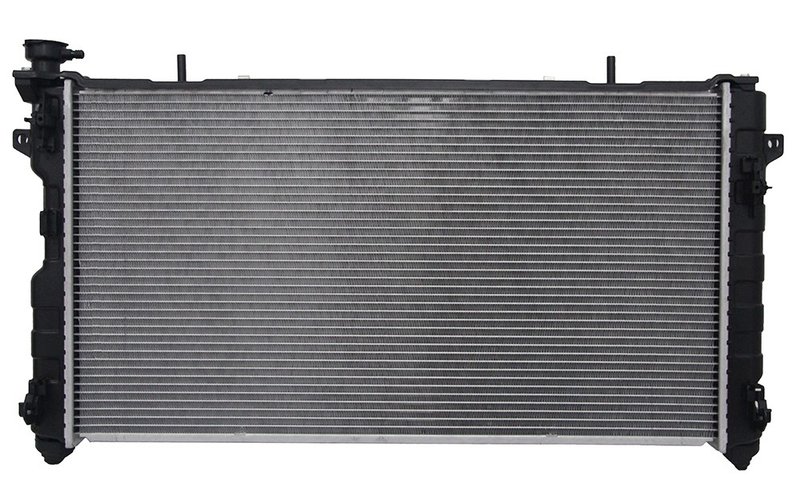

One Stop Solutions 2770 Radiator
| Brand | One Stop Solutions 2770 |
|---|---|
| Cap Included | NO |
| Core Height | 30 5/16 |
| Core Material | PA |
| Core Row Quantity | 1 |
| Core Thickness | 1-1/4 |
| Core Thickness | 32 |
| Core Width | 16 1/16 |
| Down Flow Or Cross Flow Type | CROSSFLOW |
| Engine Oil Cooler Included | NO |
| Engine Oil Cooler Type | NONE |
| Inlet Diameter | 1 9/16 |
| Inlet Header Length | 17 3/8 |
| Inlet Header Width | 2 3/16 |
| Outlet Diameter | 1 9/16 |
| Outlet Header Length | 17 3/8 |
| Outlet Header Width | 2 3/16 |
| Tank Material | PLASTIC |
| Transmission Oil Cooler Included | NO |
| Transmission Oil Cooler Type | NONE |
| Fits | Dodge · 3 vehicles |
O.E. form and function. Built as a direct-fit radiator with a hassle-free installation.
Premium aluminum construction. Cadmium-plated tubes help resist premature failure.
Individually pressure tested. Each unit is tested for leaks before it leaves production.
Cross-references APDI 8012770, Koyorad A2770 and Partslink Numbering System CH3010335 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Radiator for 2005-2007 Dodge Caravan
Restore cooling performance with this OSC Premium New Automotive Radiator, part number 2770. It is built for the 2005-2007 Dodge Caravan and engineered to match original equipment form and function for a direct replacement on crossflow applications.
- Fits 2005-2007 Dodge Caravan, N/A
- Part number 2770 for direct catalog lookup
- Crossflow radiator design
- Core height: 30 5/16 in.
- Core width: 16 1/16 in.
- Core thickness: 1-1/4 in.
- 1-row core construction
- Plastic tank construction with PA core material
- Inlet and outlet diameter: 1 9/16 in.
- No engine oil cooler, transmission oil cooler, or cap included
Built To OE Specifications
OSC designs this radiator to follow original equipment form and function, with premium-grade aluminum components, cadmium-plated tubes, and fitted components assembled to factory specifications. The radiator is individually pressure tested during production, and the design includes a die-cut gasket to help maintain a leak-resistant seal. Part number 2770 is also engineered with enhancements such as increased fin density and a thicker core to address heat load in higher-mileage vehicles.
This part cross-references APDI 8012770 for the same application.
Common Cooling Problems It Can Address
- Engine overheating from a restricted or aging radiator
- Coolant loss caused by leaks at the tank or core interface
- Reduced heat rejection from worn fins or internal tube deterioration
- Temperature instability during stop-and-go driving
- Cooling system performance decline in a high-mileage Dodge Caravan
Installation Notes
Verify radiator dimensions, inlet and outlet size, and crossflow layout before installation. Confirm that your vehicle does not require an integrated engine oil cooler or transmission oil cooler, since this unit is listed without either. For best results, inspect hoses, clamps, and coolant condition during replacement on the 2005-2007 Dodge Caravan.
Quality Assurance
OSC tests the radiator core before assembly and retests the completed unit during production. The manufacturer also pressure tests the cooler circuits prior to tank installation where equipped, helping confirm assembly integrity before the part is packaged for service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2007 | Dodge | Caravan | 2.4L | L4 | N/A | — |
| 2006 | Dodge | Caravan | 2.4L | L4 | N/A | — |
| 2005 | Dodge | Caravan | 2.4L | L4 | N/A | — |
