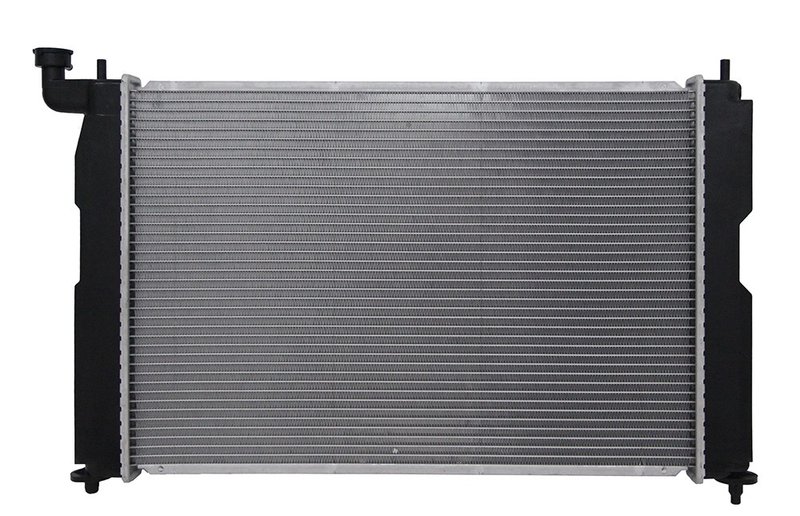

One Stop Solutions 2776 Radiator

Reliable Radiator Replacement for Scion tC

The One Stop Solutions radiator part number 2776 is designed specifically for the Scion tC, providing a direct replacement that ensures proper cooling system performance. Engineered with quality materials and precise dimensions, this radiator supports efficient heat dissipation and transmission oil cooling.

• Hassle free installation with drop-in fit, form, and function
• O.E. performance with engineering enhancements for improved cooling and durability
• Core dimensions: 23 5/8" height, 15 11/16" width, and 5/8" thickness
• Plastic tanks and PA core material for corrosion resistance
• Includes concentric transmission oil cooler with 1" diameter fittings
• Crossflow design with 1 core row for optimized coolant flow
• All components fitted and torqued to factory specifications
• 100% tested up to three times during production for quality assurance

Technical Details and Construction

This radiator features a crossflow core measuring 23 5/8 inches in height and 15 11/16 inches in width, with a core thickness of 5/8 inch. The core is constructed from PA material, known for its durability and heat resistance, while the tanks are made from plastic to reduce weight and prevent corrosion. The inlet and outlet headers both measure 17 inches in length and 2 inches in width, with inlet and outlet diameters of 1 5/16 inches, ensuring compatibility with the Scion tC cooling system. A concentric transmission oil cooler is integrated, featuring 1-inch diameter fittings spaced 9 13/16 inches apart, supporting transmission fluid temperature regulation. This radiator does not include an engine oil cooler and is designed with a single core row for efficient heat exchange.

Compatible Vehicles and Applications

This radiator is compatible with the Scion tC model, providing a direct fit replacement for the original equipment radiator. It is suitable for addressing common cooling system issues such as:

• Overheating due to radiator core damage or clogging
• Leaks in plastic tanks or header areas
• Transmission fluid overheating caused by a faulty or missing transmission oil cooler
• Reduced cooling efficiency from worn or corroded radiator components
• Failure of original radiator design components leading to premature wear

Installation Notes and Tips

Installation of the One Stop Solutions radiator 2776 is straightforward, designed as a drop-in replacement for the Scion tC. Ensure all fittings and hoses are properly connected to the 1 5/16 inch inlet and outlet ports. The radiator includes all necessary fittings and hardware, torqued to factory specifications for secure mounting. It is recommended to flush the cooling system before installation to prevent contamination and to check transmission fluid levels after installation due to the integrated transmission oil cooler.

Quality Assurance and Warranty

Each radiator undergoes rigorous testing up to three times during production to verify performance and durability. Components such as tubes, fins, headers, and tanks are manufactured from premium-grade materials to meet or exceed original equipment standards. The One Stop Solutions radiator 2776 is engineered with enhancements to address original design failures and improve service life. Warranty details are provided by the manufacturer and should be reviewed prior to installation.
