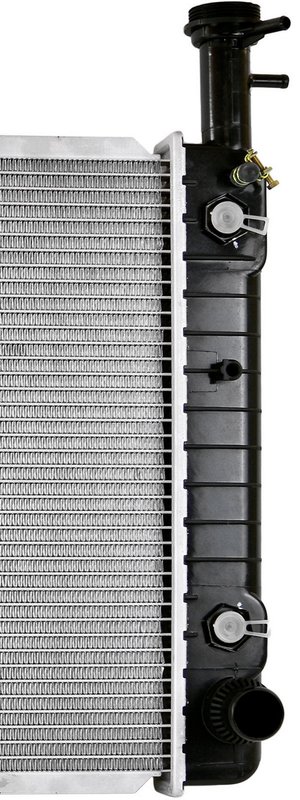

One Stop Solutions 2793 Radiator

Reliable Radiator Replacement for Chevrolet and GMC Vans

The One Stop Solutions radiator part number 2793 is designed specifically for Chevrolet Express 1500, Express 2500, GMC Savana 1500, and Savana 2500 models. This radiator offers a crossflow design with a plastic tank and premium core materials to ensure efficient engine cooling and transmission oil cooling.

• Hassle free installation with drop-in fit, form, and function
• OE performance with engineering enhancements for improved cooling and durability
• Includes a plated transmission oil cooler with fittings spaced 11 1/2 inches apart
• Core dimensions: 30 1/2" height, 17 1/4" width, 1" thickness
• Plastic tanks and premium grade tubes, fins, and headers
• Tested up to three times during production for quality assurance
• Components fitted and torqued to factory specifications

Detailed Radiator Specifications and Features

This radiator features a single-row core constructed from premium PA material, measuring 30 1/2 inches in height, 17 1/4 inches in width, and 1 inch in thickness. The crossflow design optimizes coolant flow and heat dissipation. Both inlet and outlet headers measure 18 3/4 inches in length and 2 7/16 inches in width, with inlet and outlet diameters of 1 5/16 inches and 1 9/16 inches respectively. The plastic tank material reduces weight while maintaining durability. A plated transmission oil cooler is integrated, providing additional cooling for the transmission fluid, with fittings spaced 11 1/2 inches apart. This radiator does not include an engine oil cooler or cap.

Compatible Vehicles and Common Applications

This radiator is compatible with the following vehicles:

• Chevrolet Express 1500
• Chevrolet Express 2500
• GMC Savana 1500
• GMC Savana 2500

It is designed to address common cooling system issues such as:

• Overheating due to radiator core damage or clogging
• Transmission fluid overheating from inadequate cooling
• Leaks or cracks in plastic tanks or headers
• Reduced cooling efficiency from worn or corroded components
• Failure of original radiator causing engine performance issues

Installation Notes and Tips

The One Stop Solutions radiator 2793 is engineered for a direct replacement with all necessary fittings and hardware included. Installation requires no modifications, ensuring a straightforward swap for Chevrolet Express and GMC Savana vans. It is recommended to inspect hoses and clamps during installation and replace if necessary to maintain system integrity. Proper torque specifications should be followed when securing components to factory standards.

Quality Assurance and Warranty Information

Each radiator undergoes up to three quality tests during production to ensure reliability and performance. Components are assembled and torqued to meet factory specifications. The radiator includes engineering enhancements to improve cooling efficiency and extend service life. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
