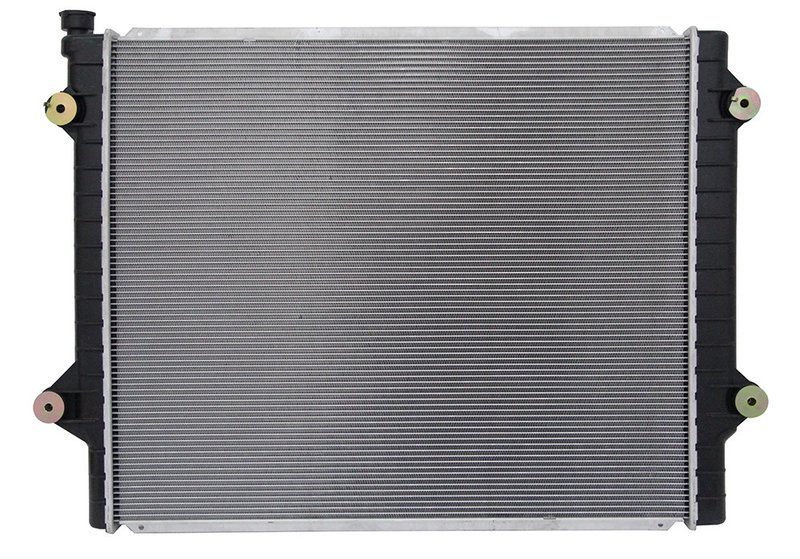

One Stop Solutions 2802 Radiator

Overview of One Stop Solutions Radiator for Toyota Tacoma

The One Stop Solutions radiator, part number 2802, is designed specifically for Toyota Tacoma models. Engineered to provide reliable cooling performance, this radiator features a crossflow design and includes a transmission oil cooler to support your vehicle's cooling system needs.

Key Features of Radiator Part Number 2802

• Core dimensions: 25 9/16" height, 21 3/16" width, and 1" thickness for efficient heat dissipation
• Crossflow core type enhances cooling efficiency
• Plastic tanks combined with premium grade tubes, fins, and headers
• Includes a plated transmission oil cooler with fittings spaced 10 1/16" apart
• Inlet and outlet diameters of 1 3/8" ensure proper coolant flow
• Drop-in fit designed for Toyota Tacoma for hassle-free installation
• Components fitted and torqued to factory specifications for durability
• 100% tested up to three times during production for quality assurance

Detailed Description and Specifications

This radiator from One Stop Solutions is built with a single-row core constructed from premium PA material, providing a balance of strength and thermal conductivity. The plastic tanks reduce weight while maintaining durability. The crossflow design allows coolant to flow horizontally, improving heat exchange efficiency. The integrated plated transmission oil cooler supports transmission temperature regulation, a critical feature for Toyota Tacoma vehicles used in towing or heavy-duty conditions. Both inlet and outlet headers measure 22 3/16" in length and 2" in width, ensuring compatibility with factory hoses and fittings. The radiator does not include an engine oil cooler or cap, focusing on core cooling and transmission oil cooling functions.

Common Applications and Issues Addressed

• Replacement for leaking or damaged radiators in Toyota Tacoma models
• Resolves overheating caused by clogged or inefficient cooling cores
• Addresses transmission overheating with integrated transmission oil cooler
• Fixes coolant leaks from cracked plastic tanks or headers
• Improves cooling system performance after engine modifications or heavy use

Installation Notes and Tips

Installation of the One Stop Solutions radiator 2802 is designed to be straightforward with a drop-in fit for Toyota Tacoma vehicles. Ensure all factory fittings and hardware are reused or replaced as necessary. Verify that the inlet and outlet hoses match the 1 3/8" diameter specifications. Properly torque all fittings to factory specifications to prevent leaks. Bleed the cooling system thoroughly after installation to avoid air pockets and ensure optimal performance.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to ensure reliability and performance. Components are assembled and torqued to factory specifications to maintain structural integrity. While specific warranty details are not provided, One Stop Solutions products are manufactured to meet or exceed OE standards, offering dependable service life for Toyota Tacoma cooling system replacements.
