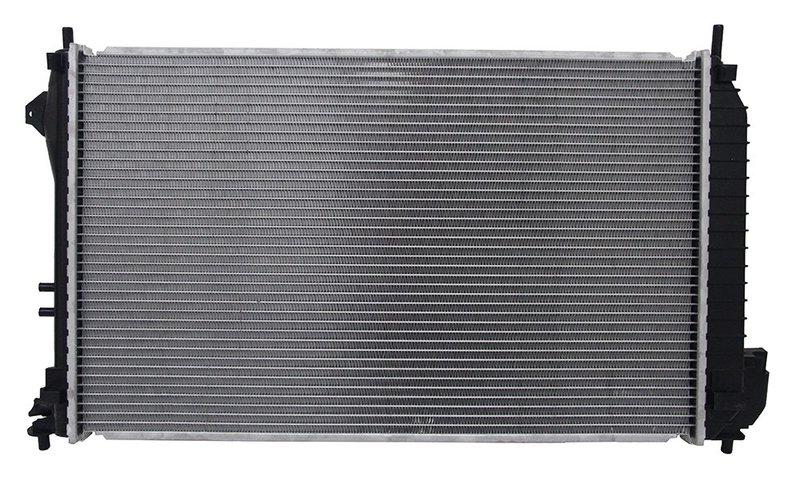

One Stop Solutions 2810 Radiator

Overview of One Stop Solutions Radiator 2810 for Saab 9-3, 9-3X, and 9-5

The One Stop Solutions Radiator part number 2810 is engineered specifically for Saab 9-3, 9-3X, and 9-5 models. Designed to provide reliable cooling performance, this radiator features a crossflow core and includes a transmission oil cooler to support optimal engine and transmission temperatures.

• Hassle free installation with drop-in fit, form, and function
• OE performance with engineering enhancements for improved cooling and durability
• Premium grade core and tank materials including plastic tanks and PA core
• Includes plated transmission oil cooler with fittings spaced 10 inches apart
• Core dimensions: 25 11/16" height, 15 11/16" width, 1 1/4" thickness
• Crossflow design with 1 core row for efficient heat dissipation
• Inlet and outlet diameters of 1 3/8" with 2 1/2" header widths
• Components fitted and torqued to factory specifications
• 100% tested up to three times during production for quality assurance

Detailed Radiator Specifications and Features

This radiator is constructed with a PA core material and plastic tanks, balancing durability and weight. The crossflow core design enhances coolant flow across the radiator, improving heat exchange efficiency. The core measures 25 11/16 inches in height, 15 11/16 inches in width, and 1 1/4 inches in thickness, providing adequate surface area for effective cooling.

Both the inlet and outlet headers measure 16 1/2 inches in length and 2 1/2 inches in width, with inlet and outlet diameters of 1 3/8 inches, ensuring compatibility with the Saab 9-3, 9-3X, and 9-5 cooling systems. The radiator includes a plated transmission oil cooler with fittings spaced 10 inches apart, supporting transmission fluid temperature regulation. Note that this radiator does not include an engine oil cooler or a radiator cap.

Compatible Vehicles and Common Applications

This radiator is compatible with the following Saab models:

• Saab 9-3
• Saab 9-3X
• Saab 9-5

It is designed to address common cooling system issues such as:

• Overheating due to radiator core damage or clogging
• Transmission fluid overheating from a faulty or missing transmission oil cooler
• Leaks in plastic tanks or header connections
• Reduced cooling efficiency from corrosion or wear
• Failure of original radiator components leading to engine temperature fluctuations

Installation Notes and Tips

The One Stop Solutions Radiator 2810 is designed for a direct replacement with all necessary fittings and hardware included. Installation requires standard tools and adherence to factory torque specifications to ensure proper sealing and fitment. It is recommended to inspect hoses and clamps during installation and replace if necessary to maintain system integrity.

Ensure the cooling system is properly flushed before installing the new radiator to prevent contamination. Bleed the cooling system after installation to remove air pockets and verify leak-free operation before vehicle use.

Quality Assurance and Warranty Information

Each radiator undergoes rigorous testing up to three times during production to verify performance and durability. Components are assembled and torqued to factory specifications to maintain consistent quality. The One Stop Solutions Radiator 2810 is backed by a limited warranty covering manufacturing defects, providing confidence in its reliability for Saab 9-3, 9-3X, and 9-5 applications.
