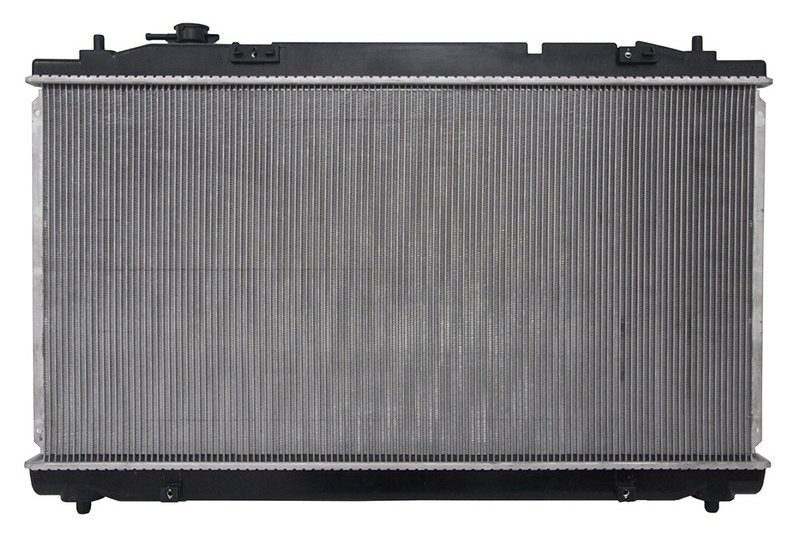

One Stop Solutions 2817 Radiator

Overview of One Stop Solutions Radiator 2817 for Toyota Avalon and Camry

The One Stop Solutions radiator part number 2817 is designed specifically for Toyota Avalon and Camry models. Engineered for reliable cooling performance, this radiator features a downflow core and includes a concentric transmission oil cooler to support efficient vehicle operation.

• Hassle free installation
• OE performance and exceptional quality
• Engineering enhancements for improved cooling and longer life
• Components fitted and torqued to factory specifications
• Premium grade tubes, fins, headers, and tanks
• Drop-in fit, form, and function with all necessary fittings
• 100% tested up to three times during production
• Design improvements to address original failures and enhance durability

Technical Specifications and Features

This radiator features a core height of 15 3/4 inches, a core width of 30 1/8 inches, and a core thickness of 5/8 inch, providing efficient heat dissipation. The core is constructed from PA material, while the tanks are made of durable plastic. The radiator includes a concentric transmission oil cooler with a diameter of 1 1/8 inches and a fitting distance of 14 3/4 inches, supporting transmission fluid cooling. Both inlet and outlet diameters measure 1 3/8 inches, with header lengths of 31 7/16 inches and widths of 1 7/16 inches (inlet) and 2 inches (outlet). This single-row core radiator uses a downflow design to optimize coolant flow and heat exchange.

Application and Common Issues Addressed

• Replacement for leaking or damaged radiators in Toyota Avalon and Camry
• Resolves overheating caused by inefficient cooling systems
• Addresses transmission fluid overheating with integrated oil cooler
• Fixes radiator core corrosion or physical damage
• Improves cooling system reliability and vehicle performance

Installation Notes and Tips

The One Stop Solutions radiator 2817 is designed as a direct replacement for compatible Toyota Avalon and Camry models, ensuring a drop-in fit with no modifications required. Installation should follow factory torque specifications for all fittings and connections. Verify that the transmission oil cooler lines are properly connected to the concentric cooler fittings. Although the radiator cap is not included, the existing cap can be reused if in good condition.

Quality Assurance and Testing

Each radiator undergoes rigorous testing up to three times during production to ensure leak-free performance and durability. Components are assembled and torqued to factory specifications to maintain OE quality standards. The product includes engineering enhancements aimed at improving cooling efficiency and extending service life compared to original equipment radiators.
